Ametra Probe Portable Spectrophotometer
Product Overview
Versatile Spectrophotometer with Remote Sensor Probe: Measure color anywhere—odd shapes, hard-to-reach places, and production lines. Not all color samples are neat, flat, and accessible. Small, curved, uneven, or hard-to-reach surfaces present measurement challenges that conventional instruments can't solve. Production line monitoring requires specialized mounting that most devices don't support.

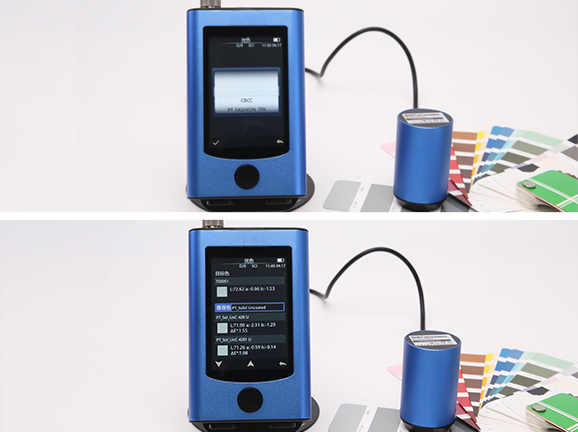

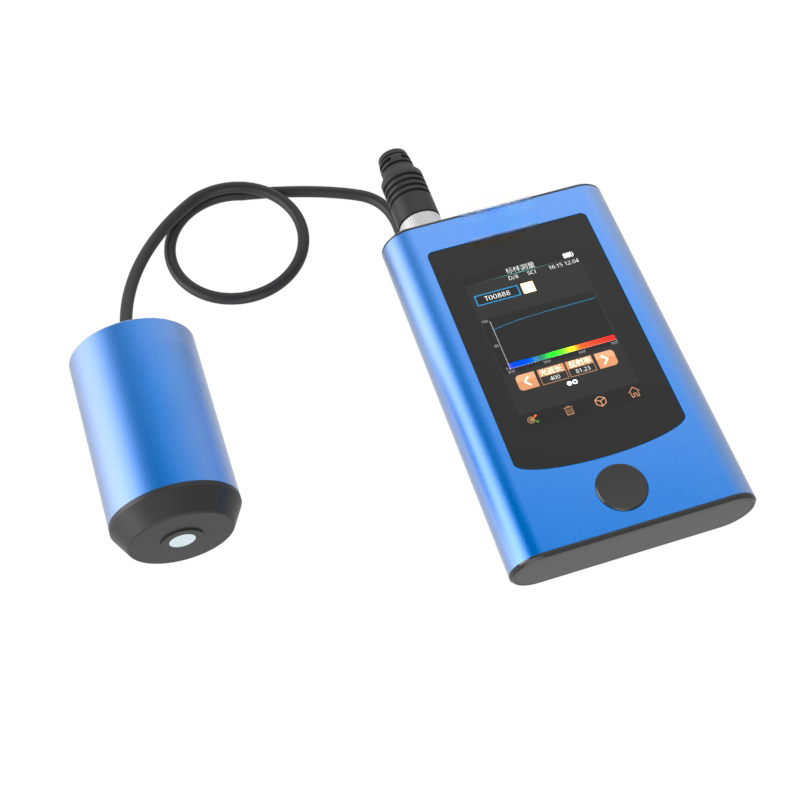

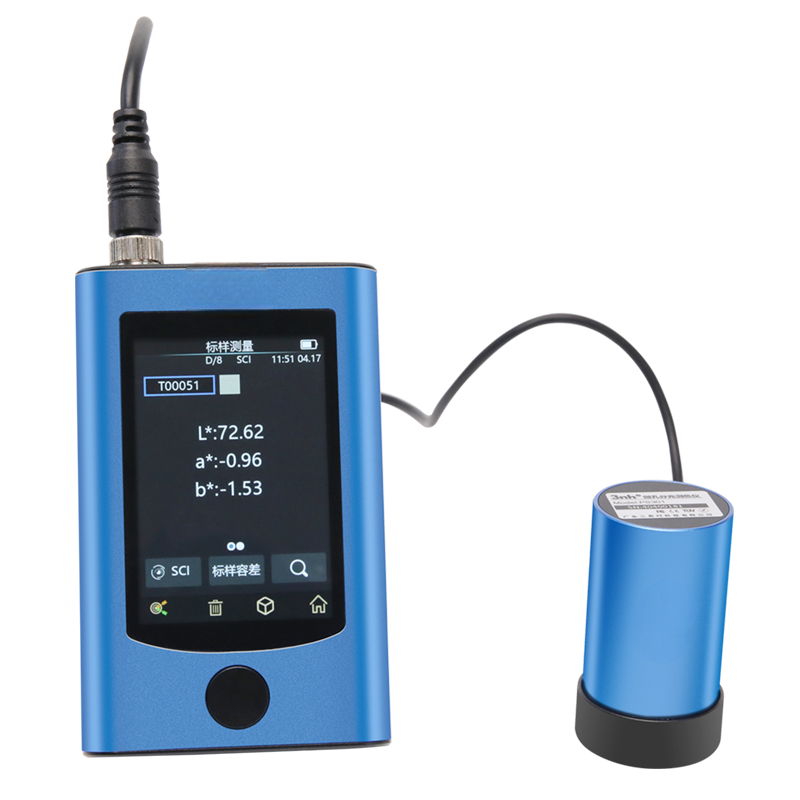

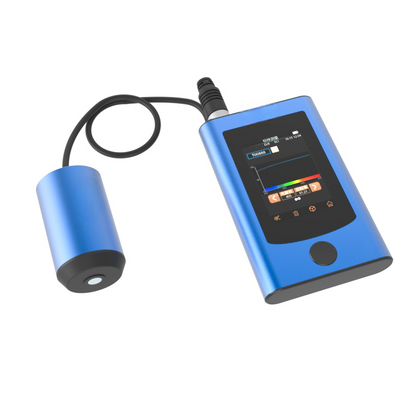

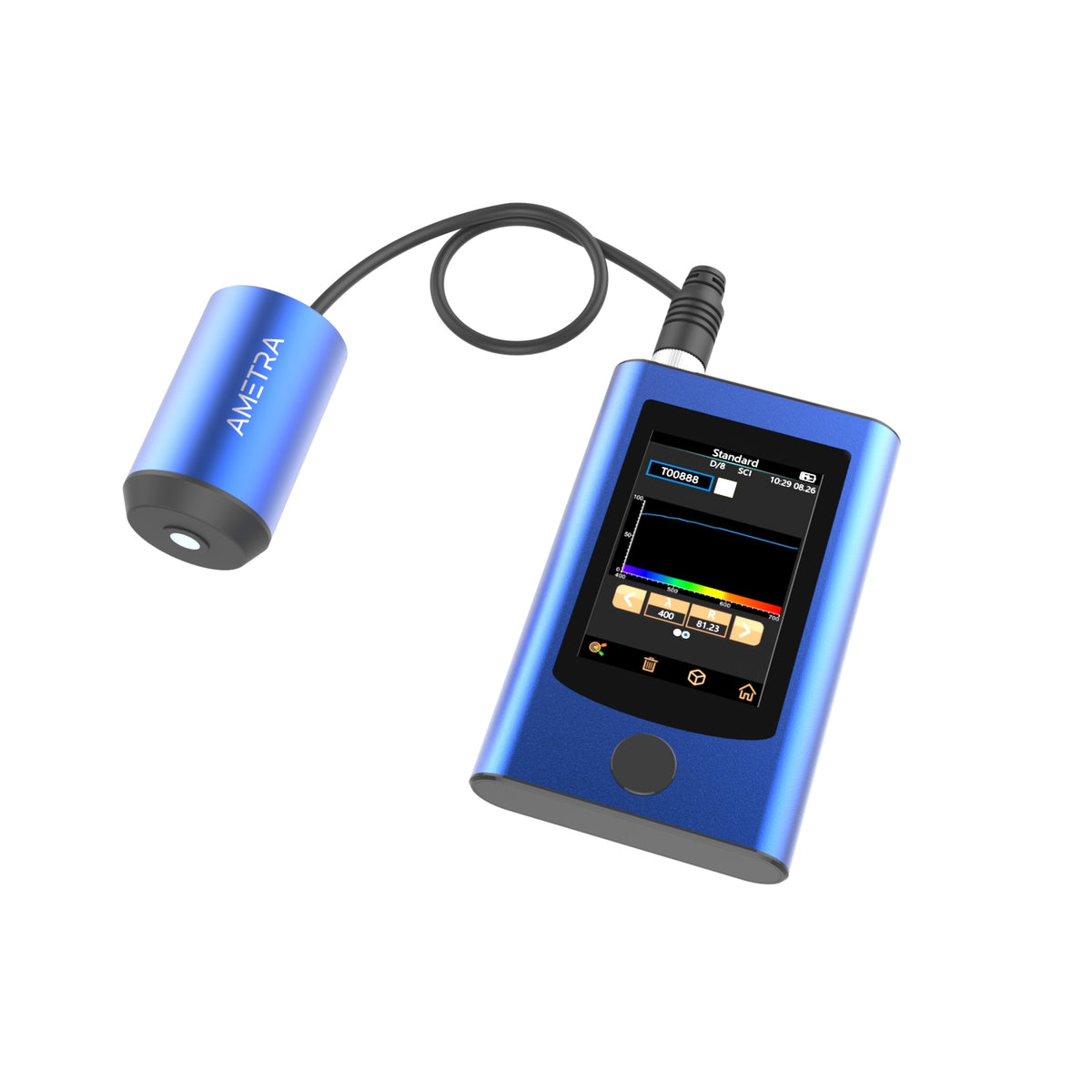

Armed with a compact color probe on a wire, Ametra Probe acts like a doctor's stethoscope for color diagnosis. It thrives where other instruments struggle—measuring samples in tight spaces and on complex surfaces.
Target Audience
- Color matchers & color matching technicians
- Color quality specialists, technicians & engineers
- Manufacturing quality engineers with color focus
- Colorists, shade matchers & tint specialists
- Color development & color lab technicians
- Technical service color specialists
Two Applications in One Device

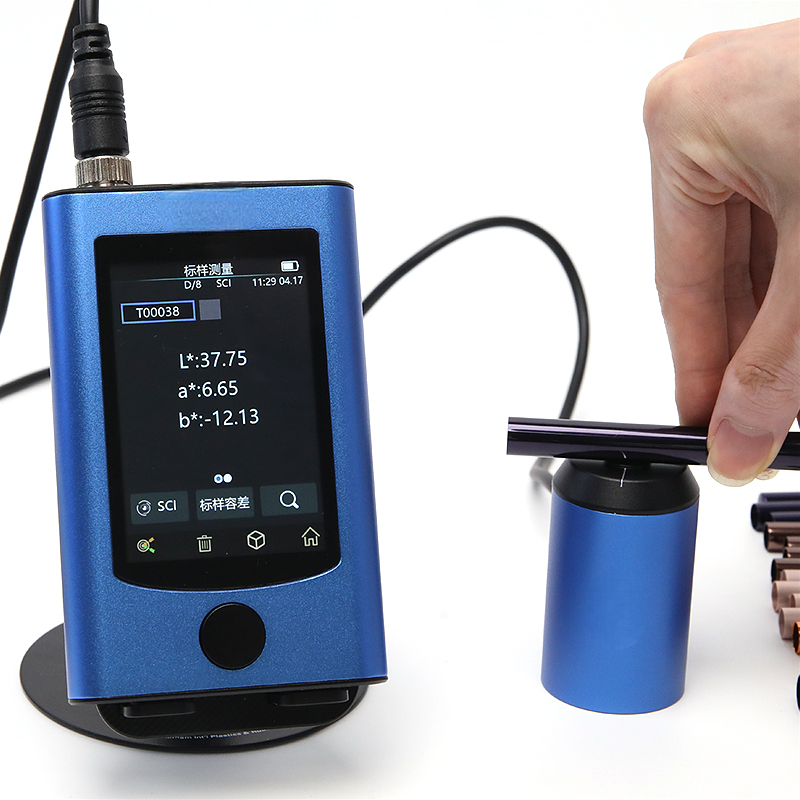

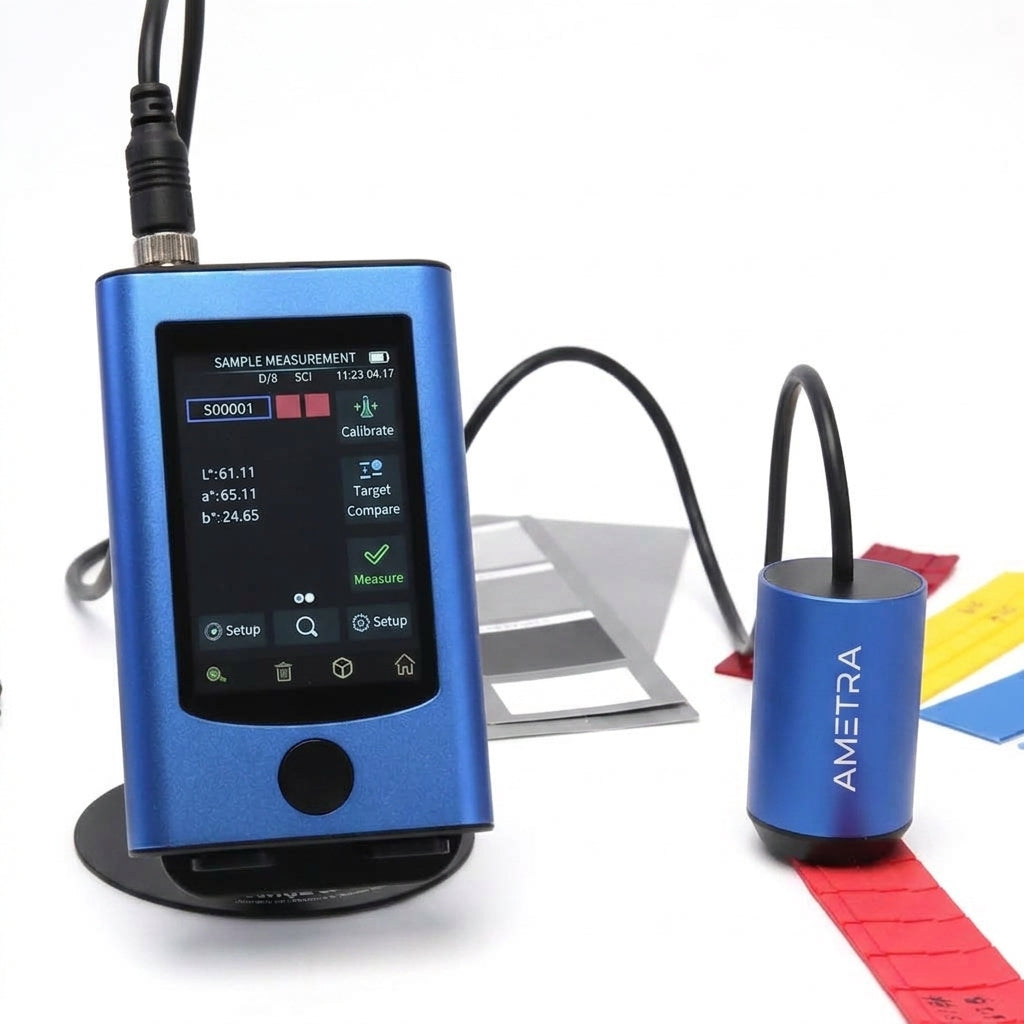

- Handheld Probe: Designed for measuring odd-shaped, small, curved, or hard-to-reach samples.

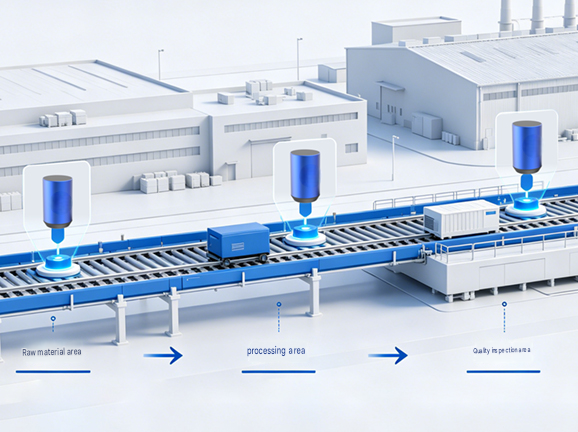

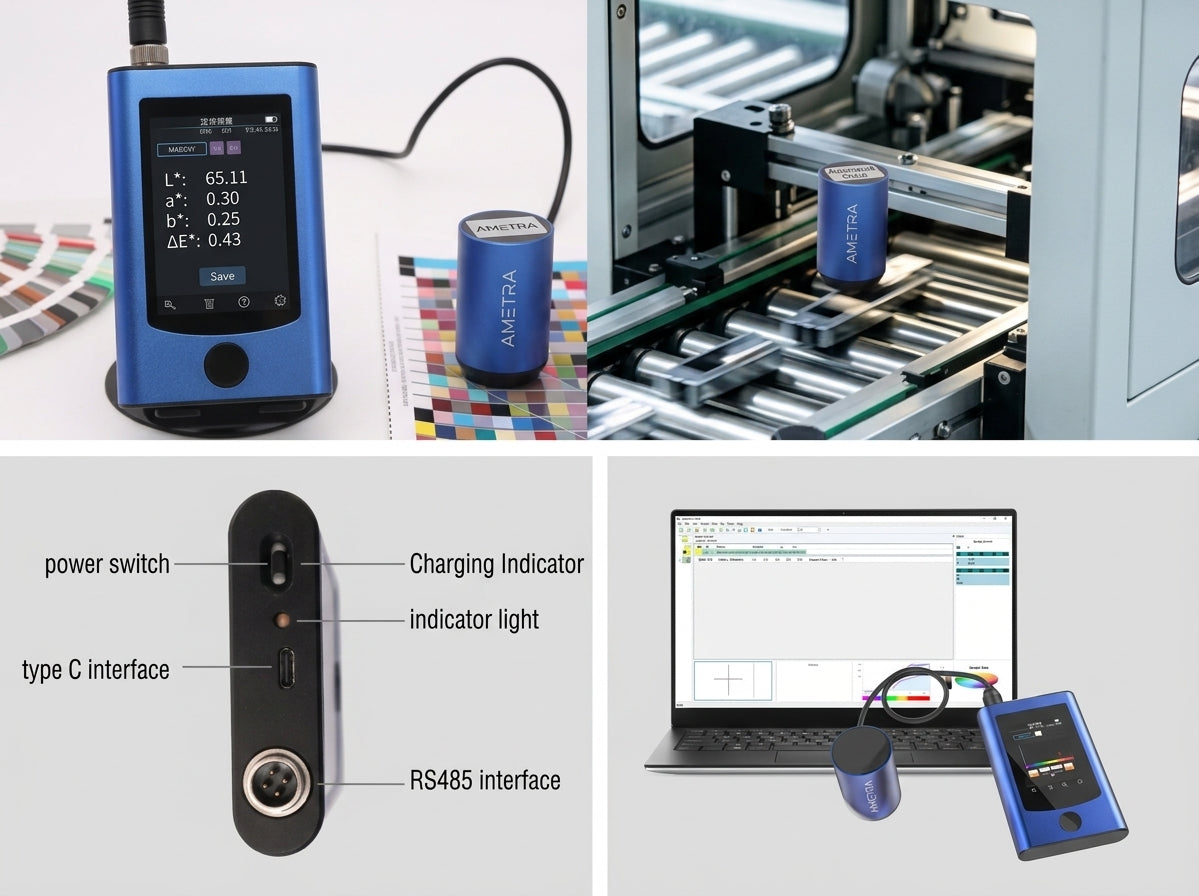

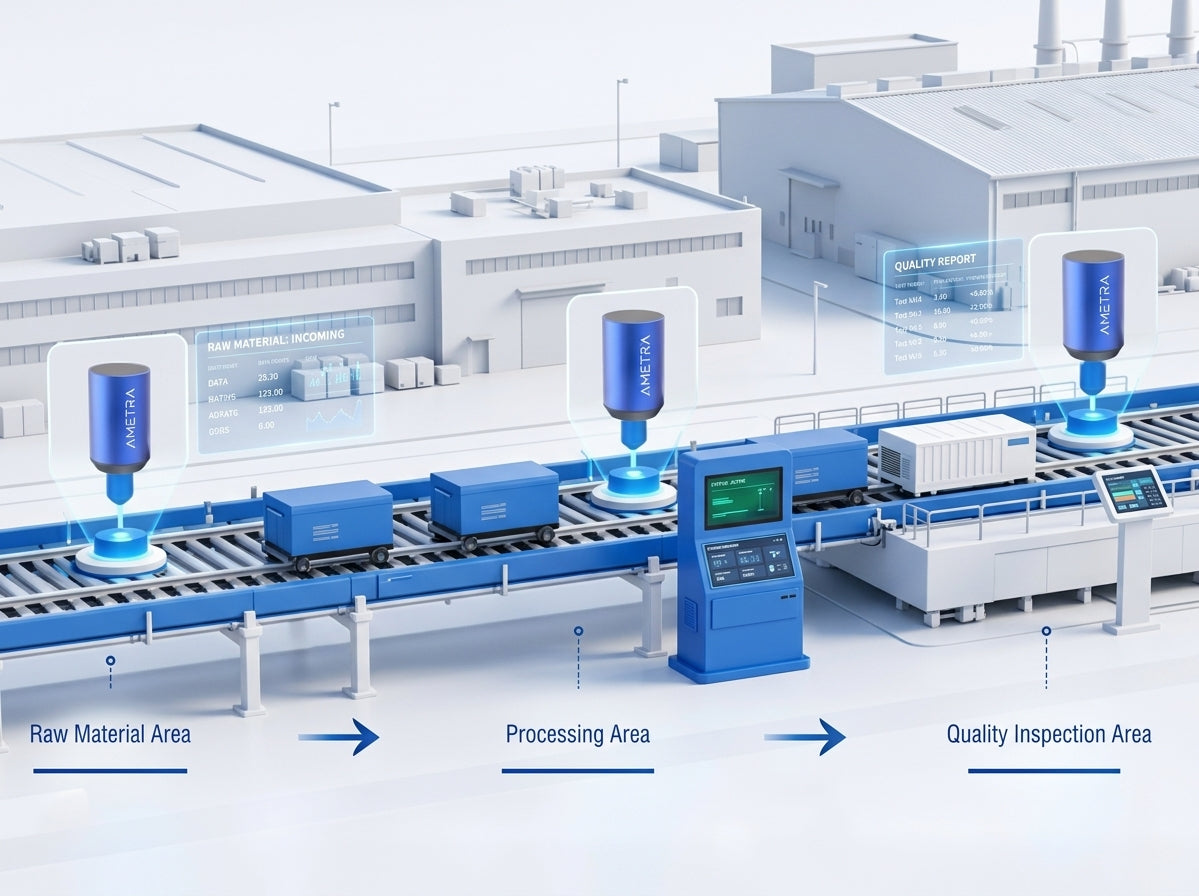

- Fixed Mounting: Can be mounted above production lines for affordable, continuous inline spectrophotometry.

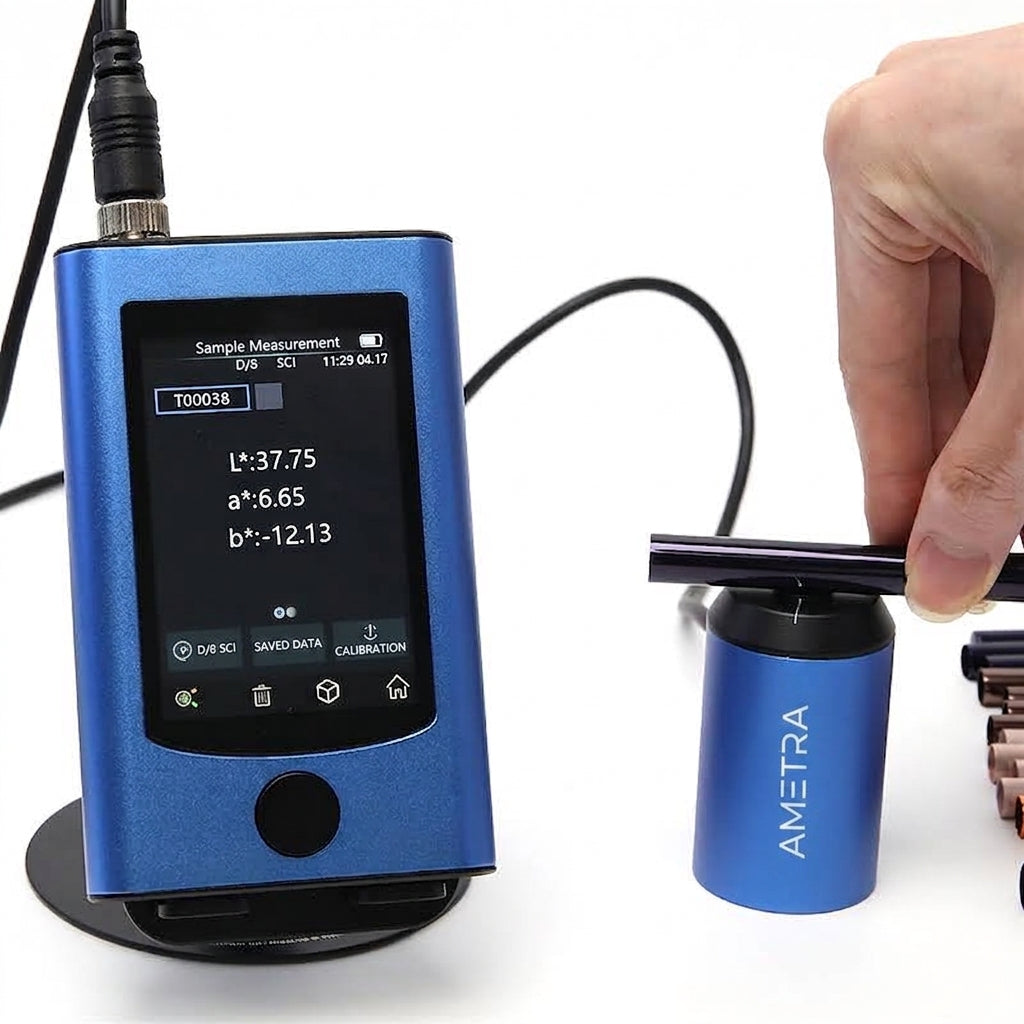

- Precision Optics: 1 mm aperture with alignment guide lines for accurate micro-surface positioning.
Business Impact & Applications
- Eliminate Blind Spots: Ensures you can measure color on any sample, anywhere—stopping quality compromises.
- Cost-Effective Inline QC: Fixed mounting provides continuous line monitoring without expensive custom solutions.
- Target Applications: Paints & coatings, plastics & polymers, textiles, construction materials.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Ametra Probe Portable Spectrophotometer |
| Price | $1,140.00 |

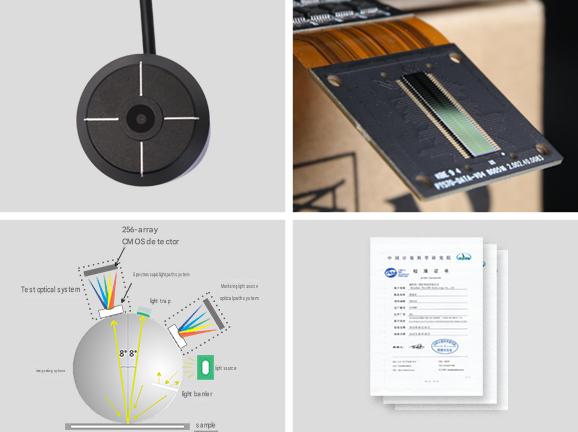

| Measuring Geometry & Specular Component | d/8° | SCI |
| Light Source & Lifespan | LED | > 3,000,000 measurements |
| Aperture & Targeting | 1 mm aperture | Alignment guide lines | 1 sec measurement time | Averaging support |
| Spectral Range & Interval | 400–700 nm | 10 nm interval |
| Observer & Illuminants | 2° & 10° Standard Observers | D65, A, D50 |
| Repeatability & Inter-Instrument Agreement | 0.03 repeatability | 0.4 Inter-Instrument Agreement |

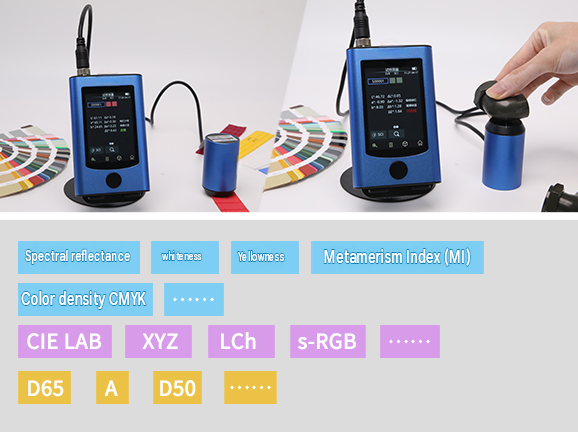

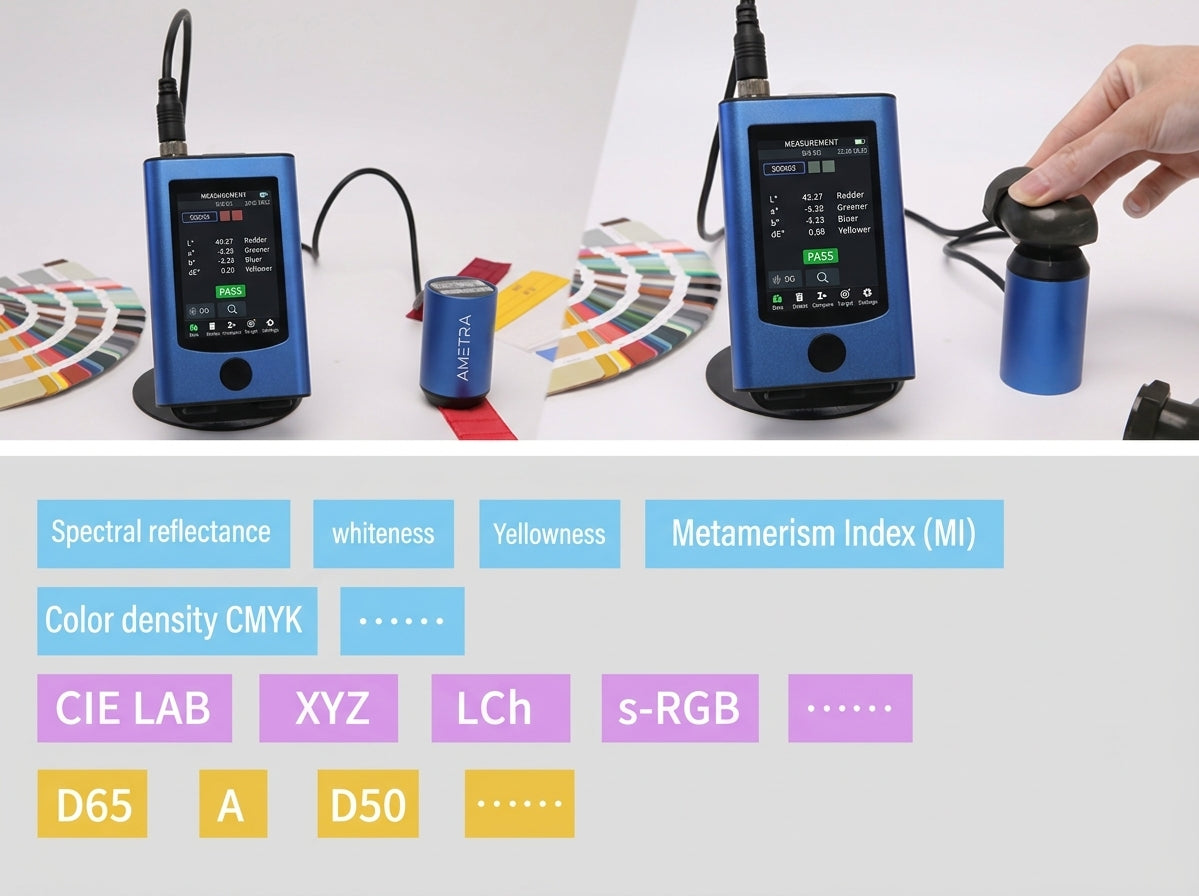

| Color Spaces, Differences & Indices |
Spaces: CIE L*a*b, XYZ, Yxy, LCh, LUV, sRGB Differences: ΔEab Indices: Reflectance, Whiteness, Yellowness, Metamerism, Color density |

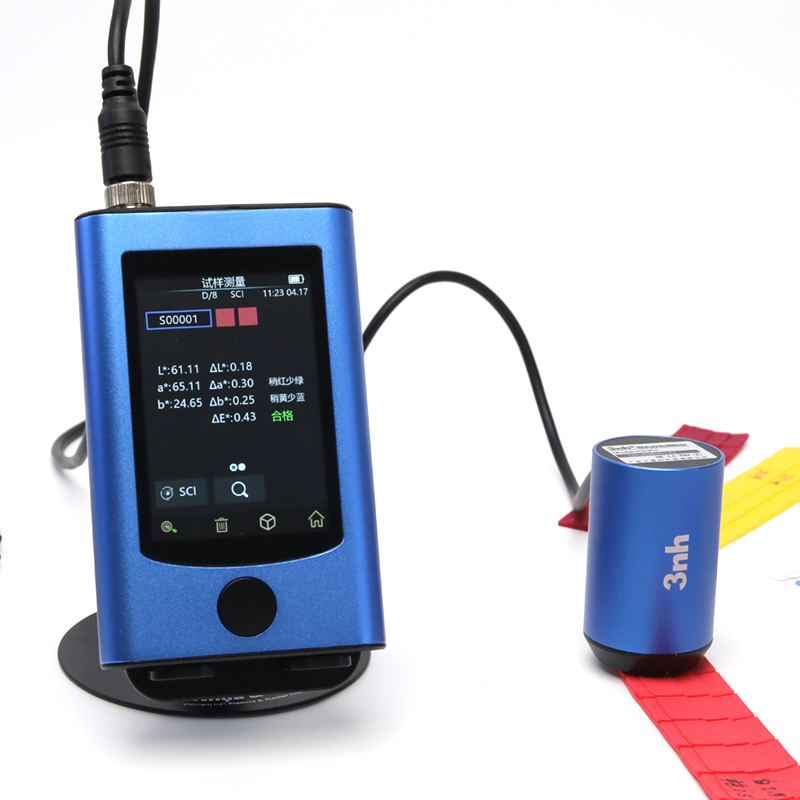

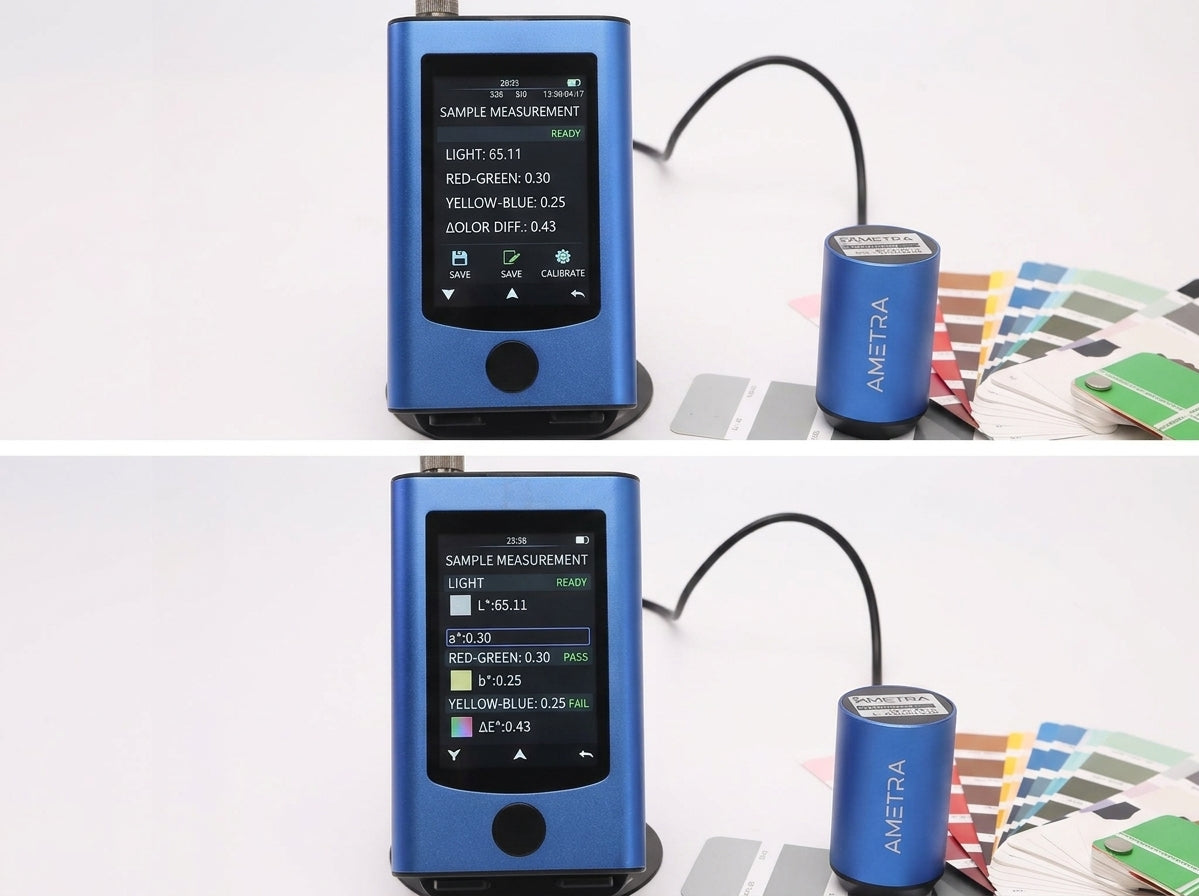

| Display, Functions & Storage | 3.5" Color Touch Screen | Displays Color Values, Numerical and Verbal Color Difference, Pass/Fail Indication | Stores up to 500 Standards and up to 10,000 Samples |
| Interface & Power | USB Type-C, Bluetooth, RS485 | Rechargeable Li-polymer battery with USB Type-C charging |
| Size & Weight |

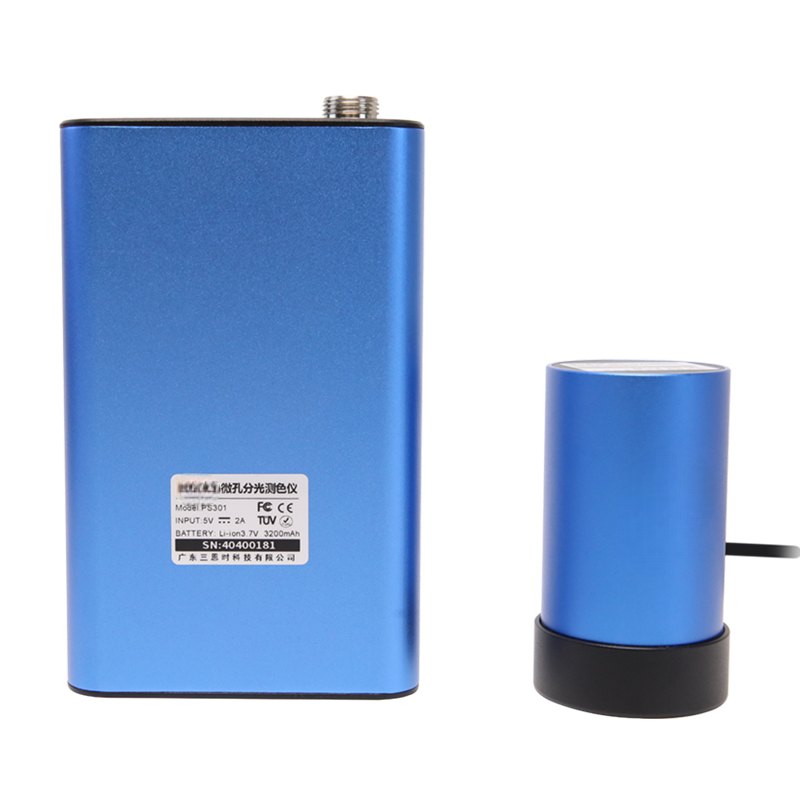

Host Unit: 80 × 132 × 20 mm [3.15 × 5.20 × 0.79 in] | 250 g [0.55 lbs] Probe: Ø43 × 73.5 mm [Ø1.69 × 2.89 in] | 240 g [0.53 lbs] |

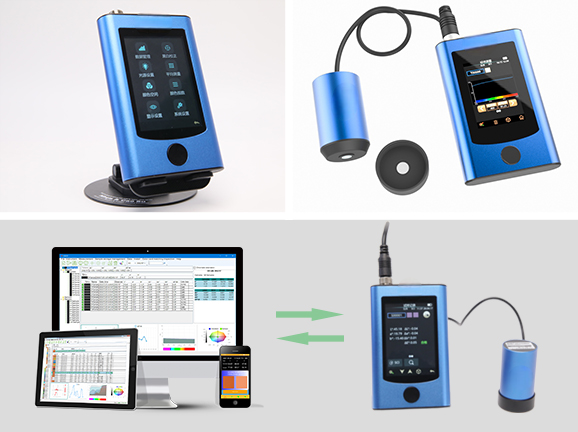

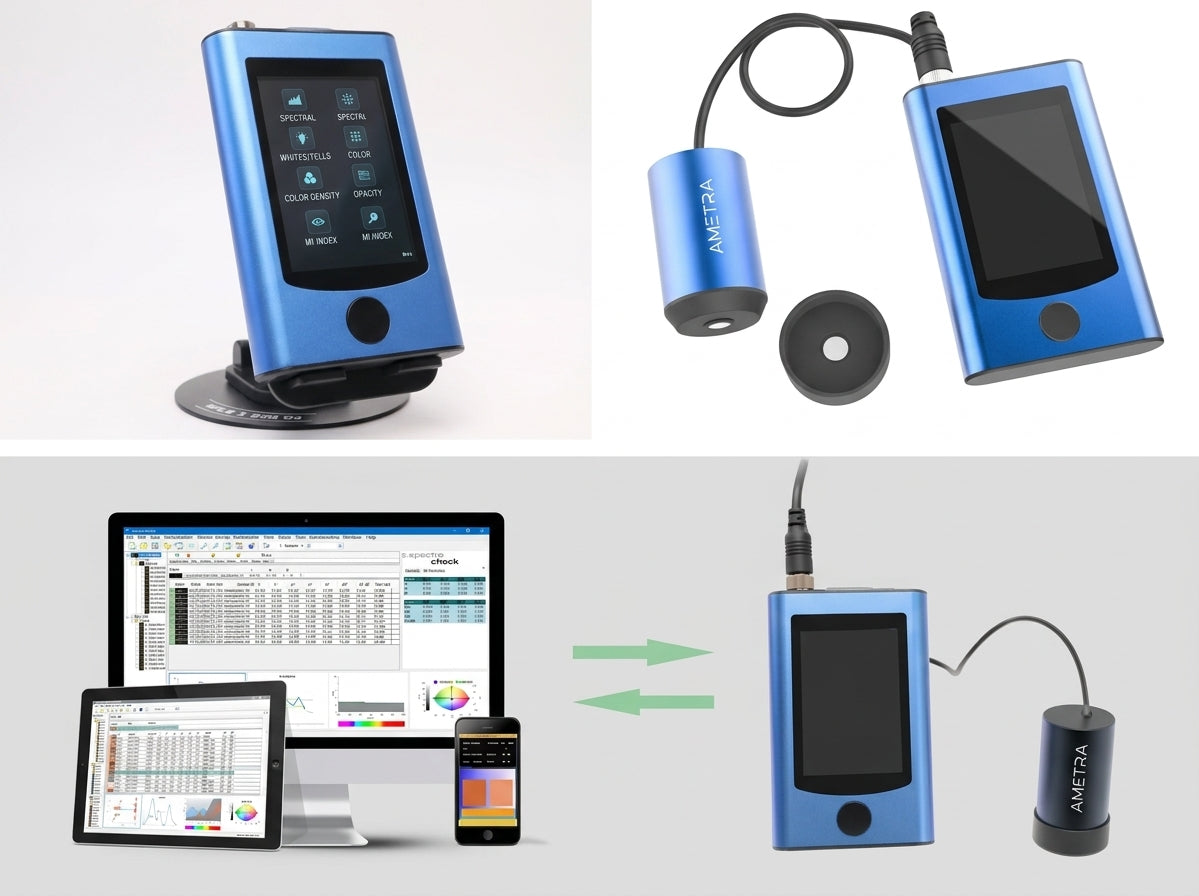

| Software & Bundled Accessories | Bundled fully functional Color Control Software |
Competitive Comparison
| Parameter | Ametra Probe Portable | ColorLite sph870 |
|---|---|---|
| Price | $1,140.00 | $9,000.00 |
| Geometry & Specular Component | d/8° | SCI | 45°/0° or d/8° or d/0° | SCI / SCE |
| Light Source & Lifespan | LED | >3,000,000 measurements | LED | >20 years |
| Aperture & Targeting | 1 mm aperture | Alignment guide lines | 1 sec | 3.5 mm aperture | – | 0.5 sec |
| Spectral Range & Interval | 400–700 nm | 10 nm | 400–700 nm | 3.5 nm |
| Observer & Illuminants | 2° & 10° | D65, A, D50 | 2° & 10° | D65, D55, D50, A, C1, C2, C3, F11, C, S, B1, B3, B5 |
| Repeatability | 0.03 | 0.05 |
| Display & Interface | 3.5" Color Touch Screen | USB-C, Bluetooth, RS485 | TFT Color 1/4-VGA 320x240 | – |
| Sample Storage | Up to 500 Standards / 10,000 Samples | Up to 1,000 Standards / 1,000 Samples |
| Dimensions & Weight | Host: 80×132×20 mm (250 g) [0.55 lbs] Probe: Ø43×73.5 mm (240 g) [0.53 lbs] |
Host: 180×82×40 mm (370 g) [0.82 lbs] Probe: 60×Ø25 mm (170 g) or 78×Ø56 mm (250 g) |
| Bundled Software | Bundled fully functional Color Control Software | Bundled simple utility for exporting stored data |
Trademarks & Legal Notice: All product names, logos, brands, trademarks, and registered trademarks mentioned on this page—including ColorLite and sph870—are the property of their respective owners. Their use on this page does not imply any affiliation with, sponsorship by, or endorsement by these trademark holders.
All product specifications, feature comparisons, and pricing details were compiled from open sources and manufacturer documentation available at the time of publication. All information is provided for comparative reference only and is subject to change, errors, and omissions without notice.
