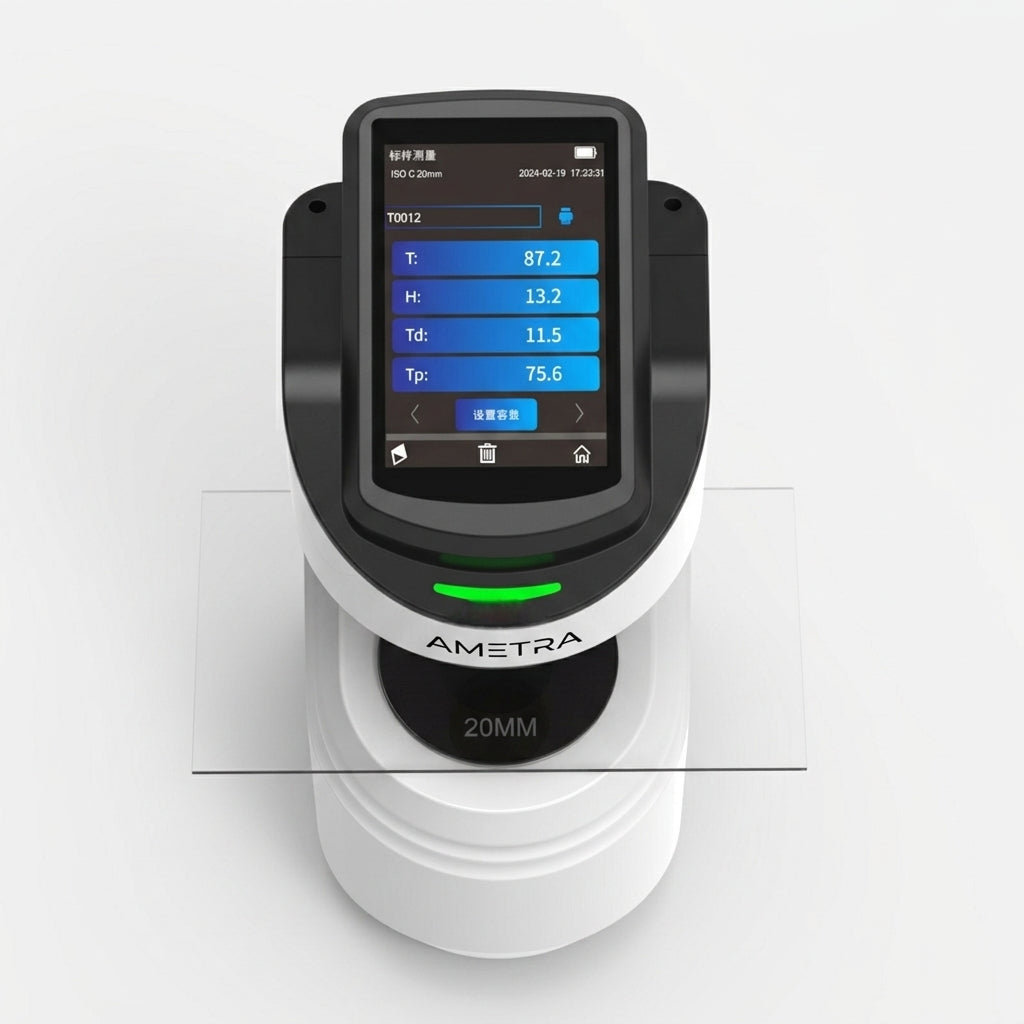

Ametra Clear Portable Transmittance Spectrophotometer I Haze Meter
Product Overview
Lightweight Portable Transmission Spectrophotometer & Haze Meter: Measure transparent and translucent samples anywhere. Traditionally, measuring transparent and translucent objects like glass, film, and liquids required bulky, stationary, expensive benchtop spectrophotometers. This limited where and when you could perform quality control on these materials.

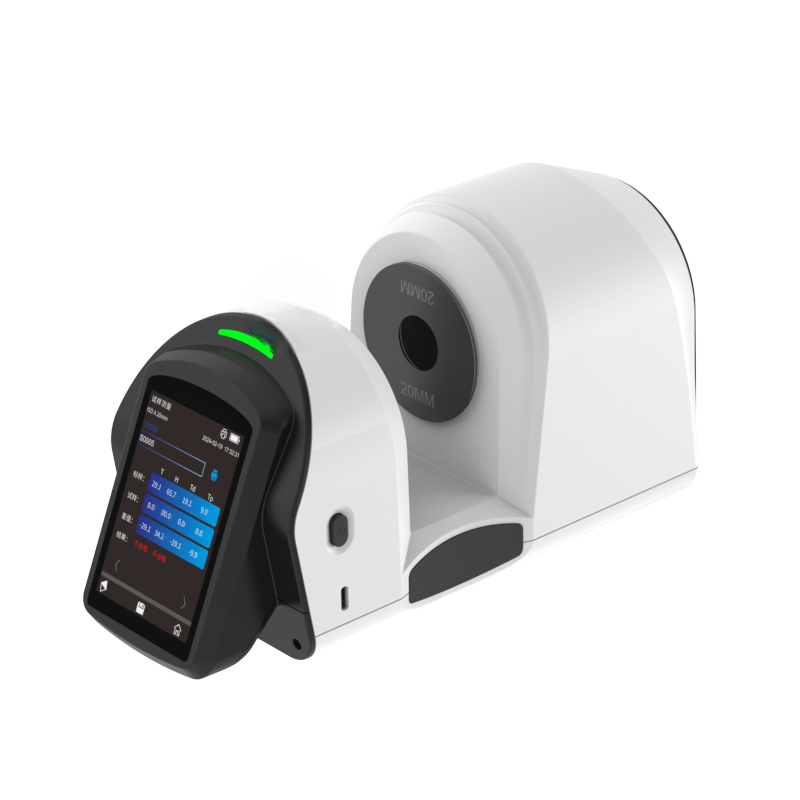

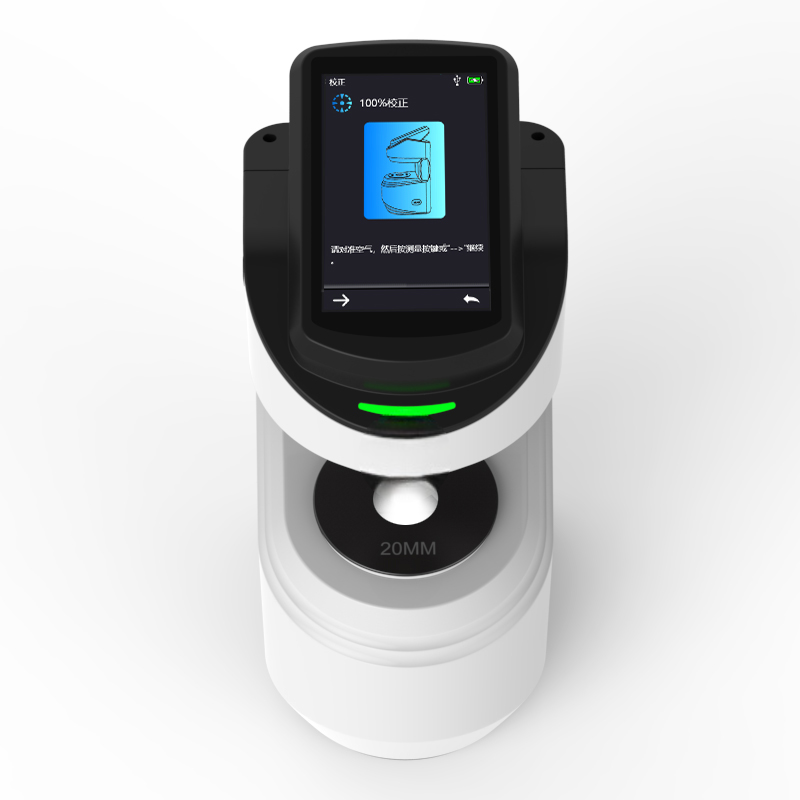

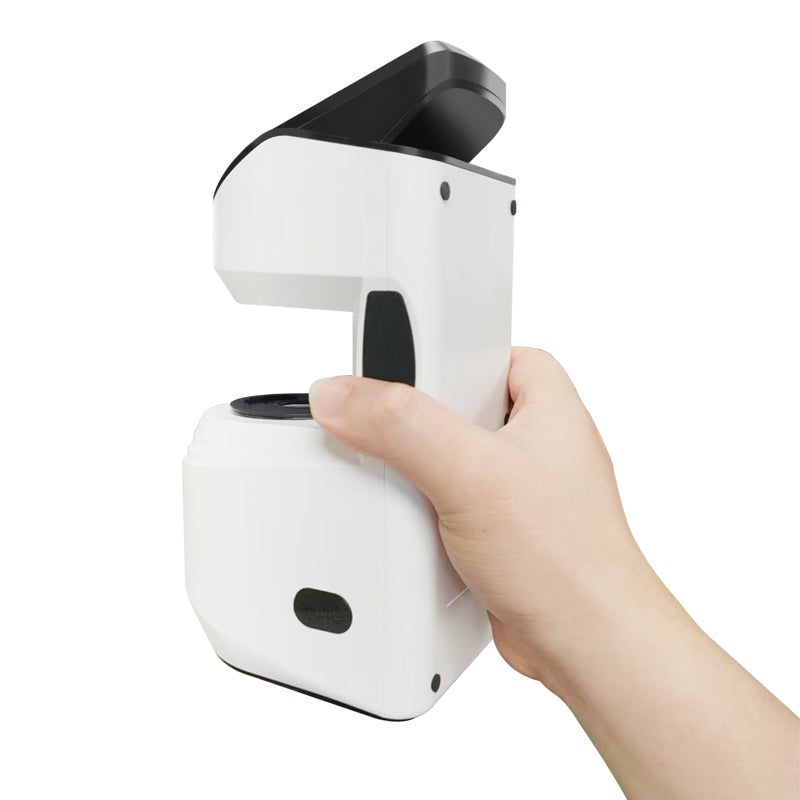

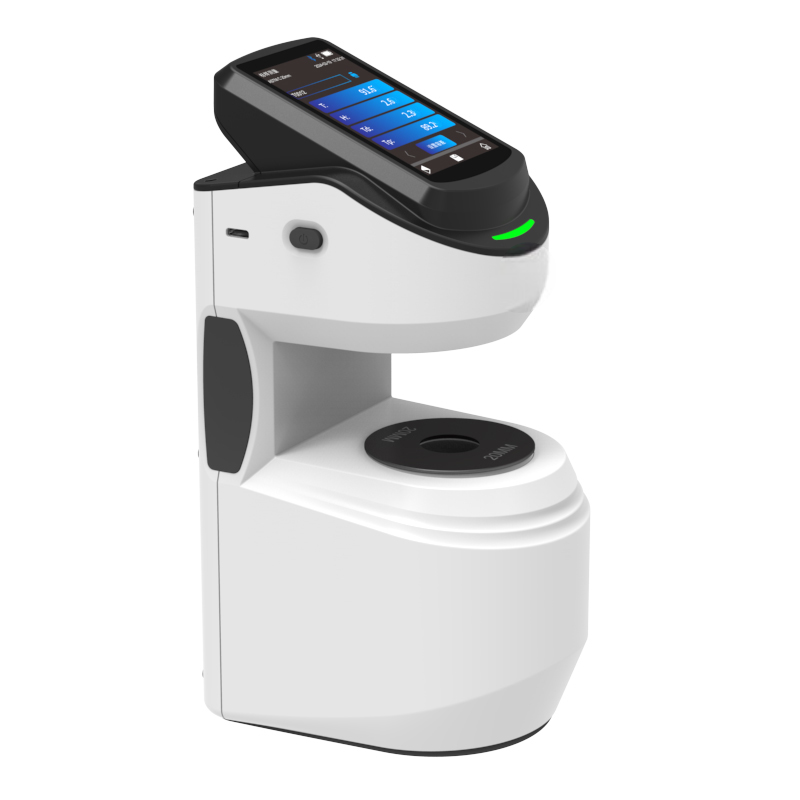

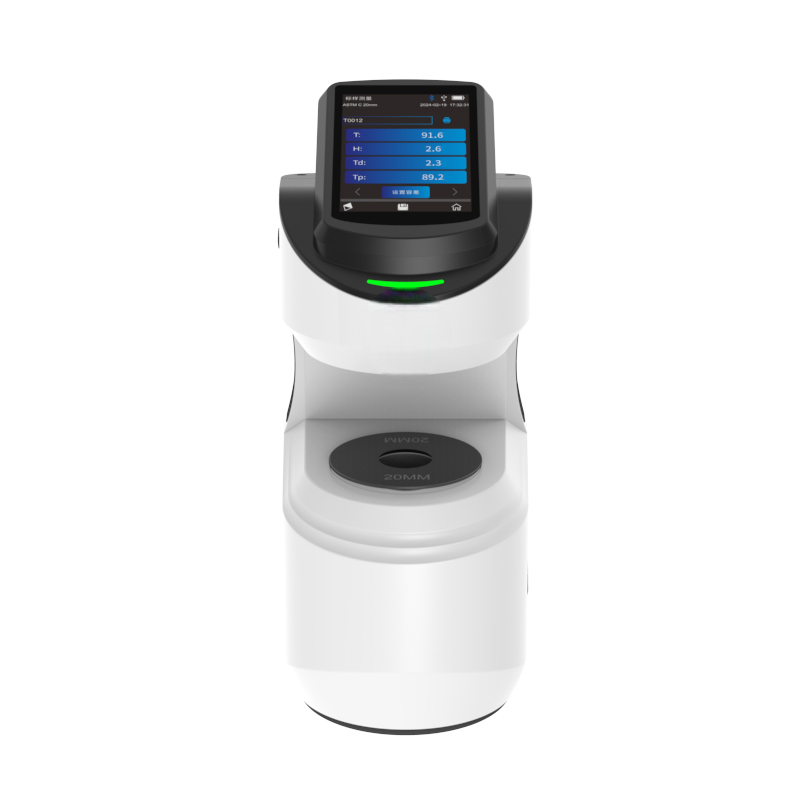

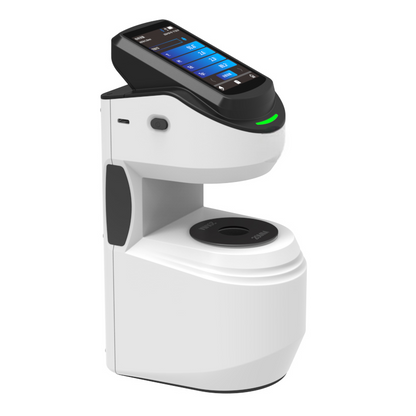

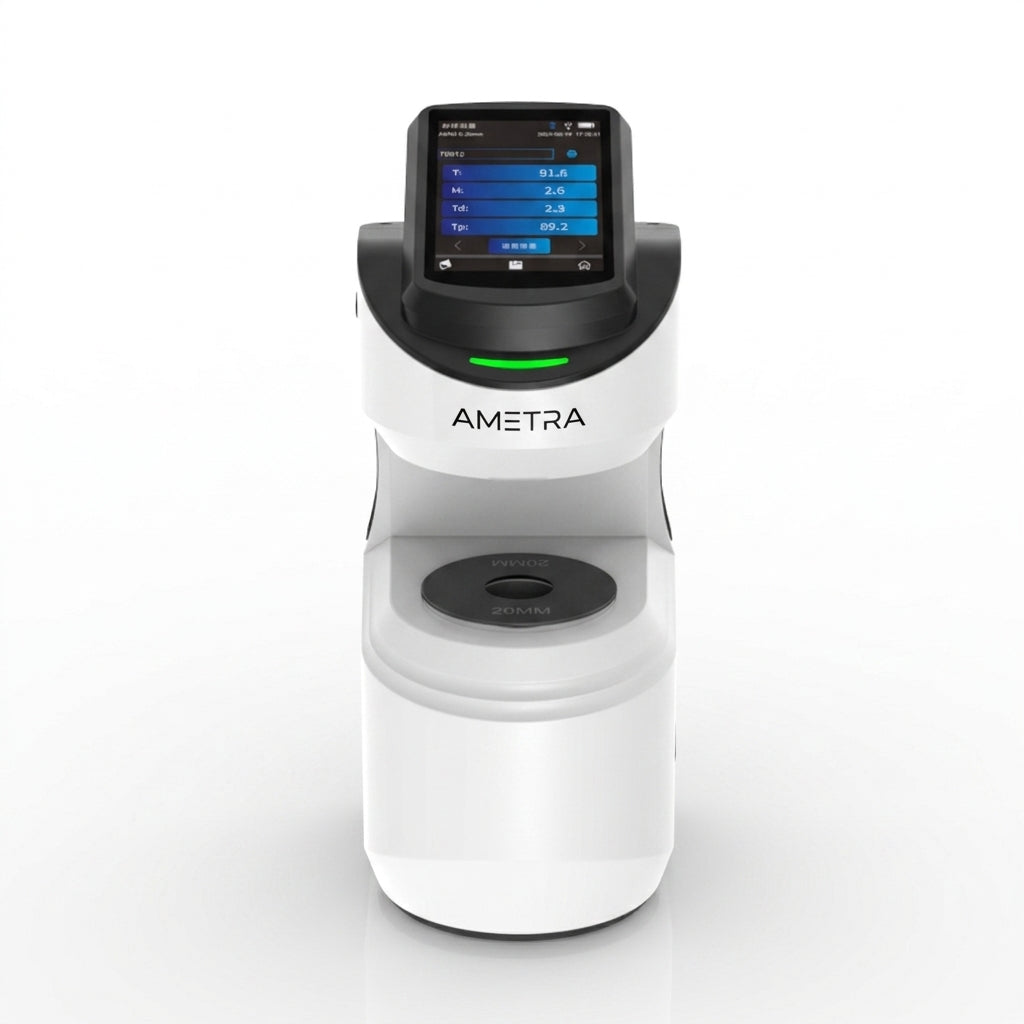

The Ametra Clear Portable Transmittance Spectrophotometer | Haze Meter is a lightweight, portable transmission spectrophotometer designed to operate seamlessly in the lab, directly on the production line, or out in the field.
Target Audience
- Color matchers & color matching technicians
- Colorists & tint specialists
- Color quality control technicians & engineers
- Manufacturing quality engineers with color focus
- Color development & lab technicians
- Shade matchers & technical service specialists
Core Capabilities

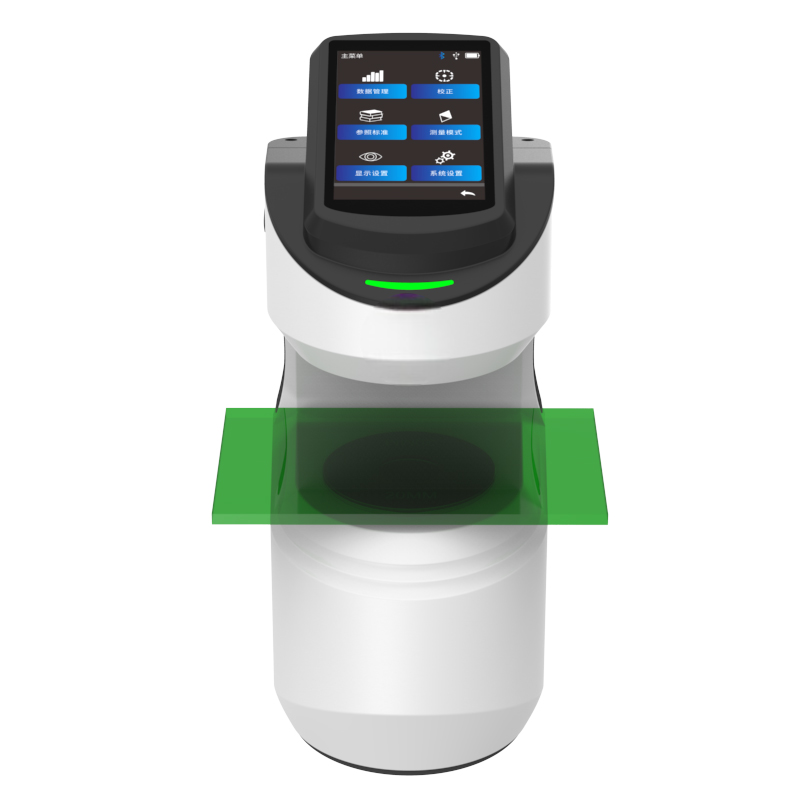

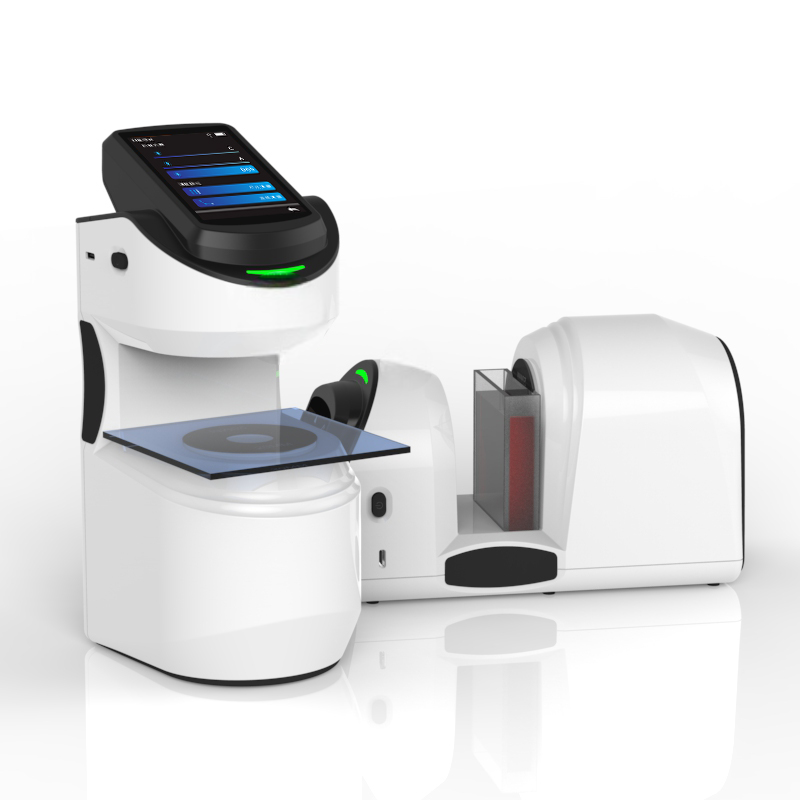

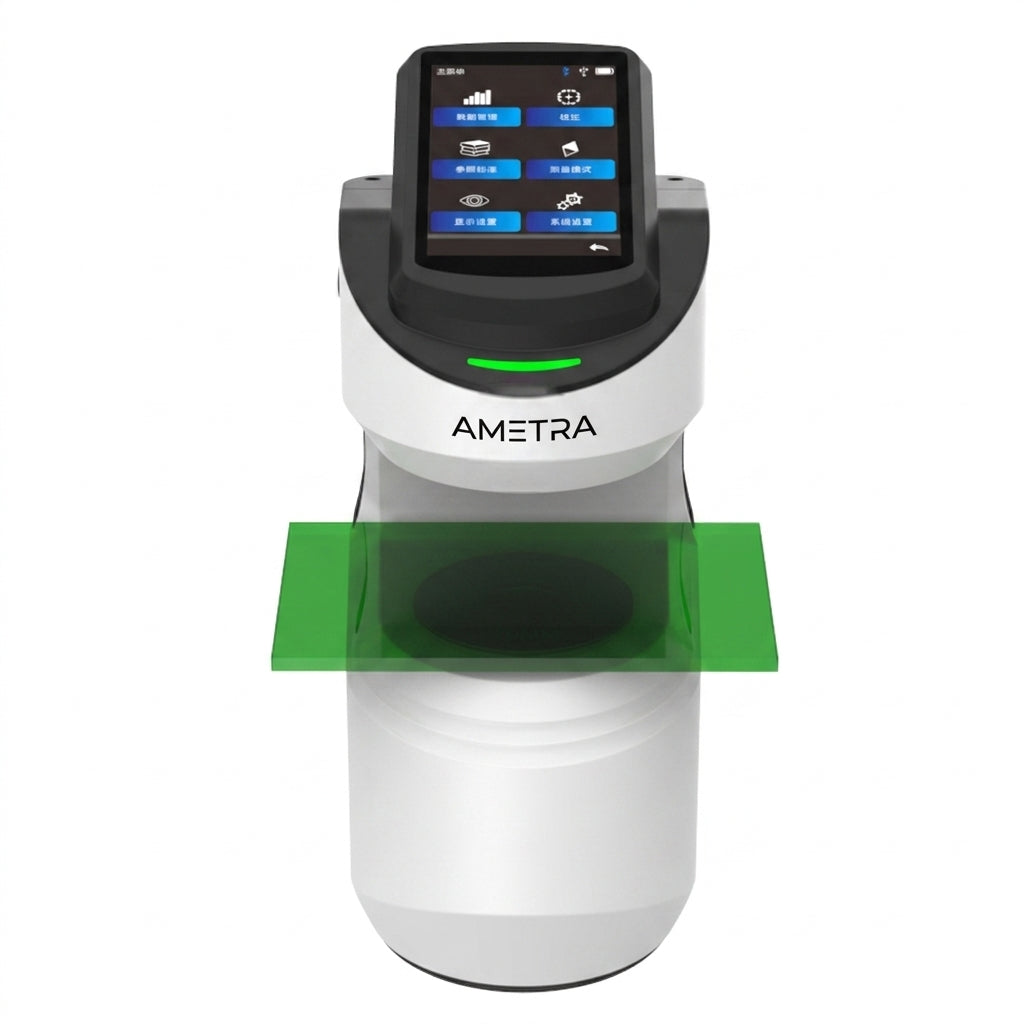

- Measure glass, plastic film, and liquid samples using bundled cuvettes

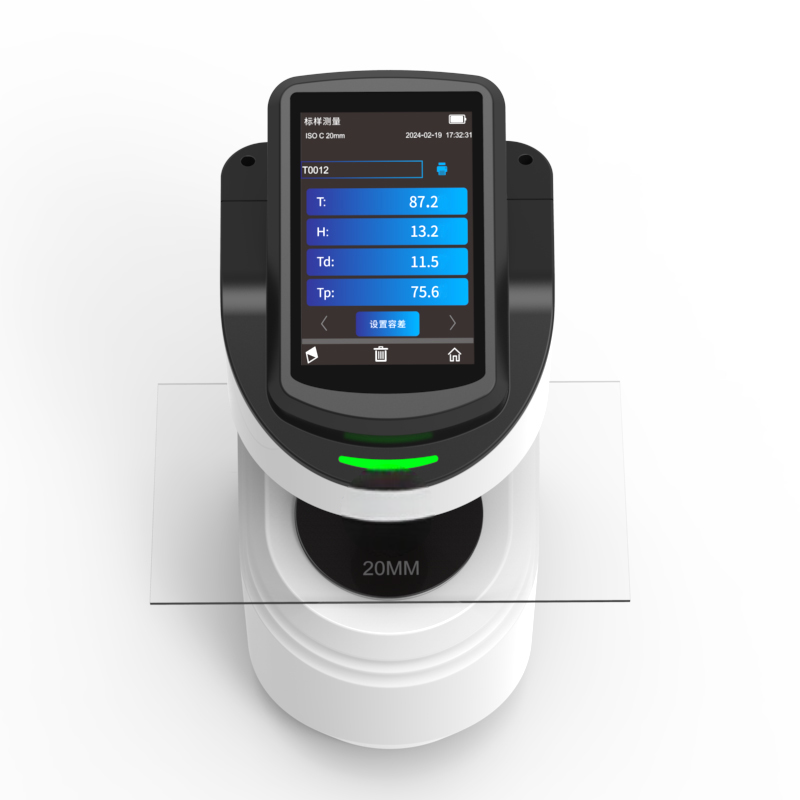

- Accurately determine color, total transmittance (%T), and haze
- Store standards and conduct instant sample comparisons
- Set customized control tolerances with Pass/Fail indicators

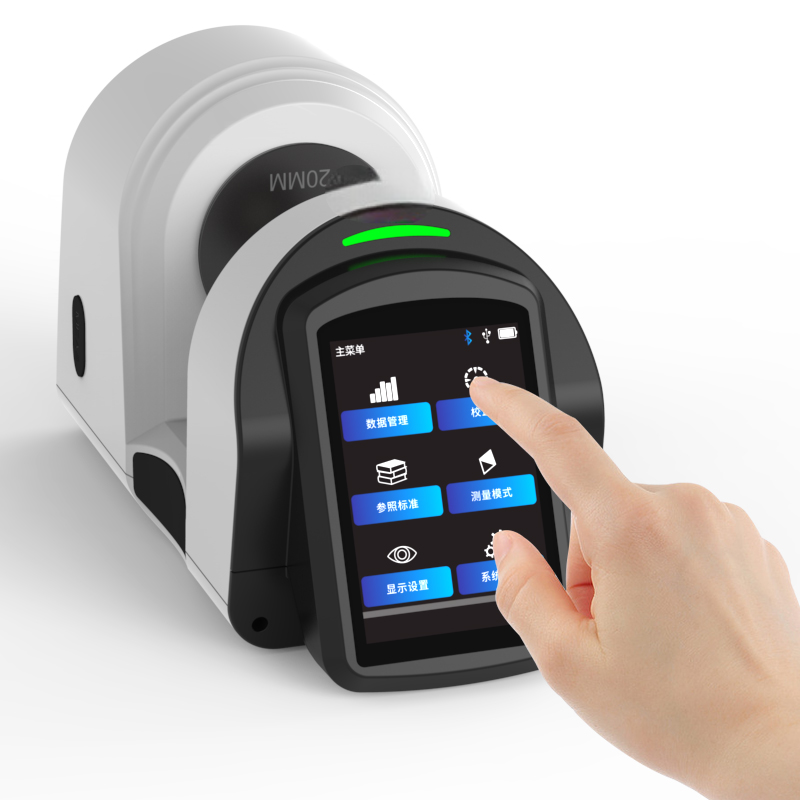

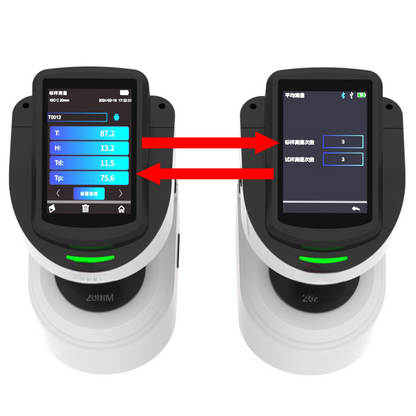

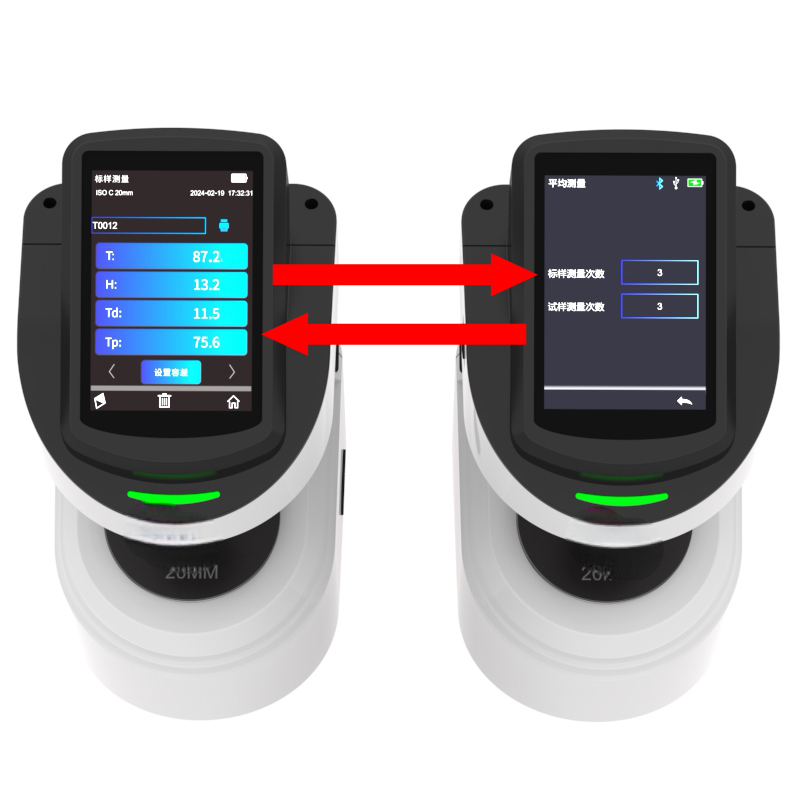

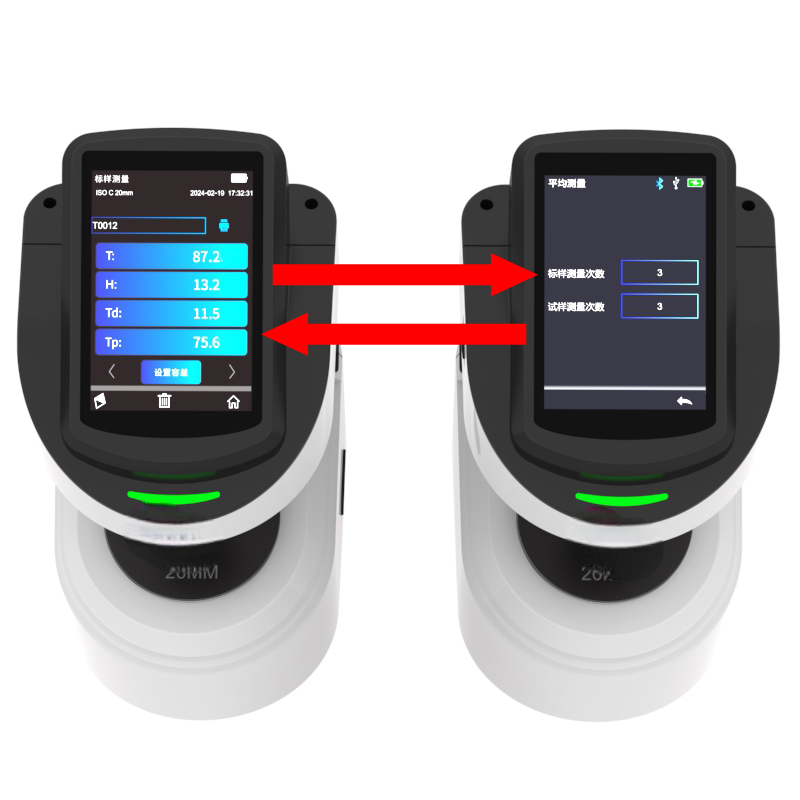

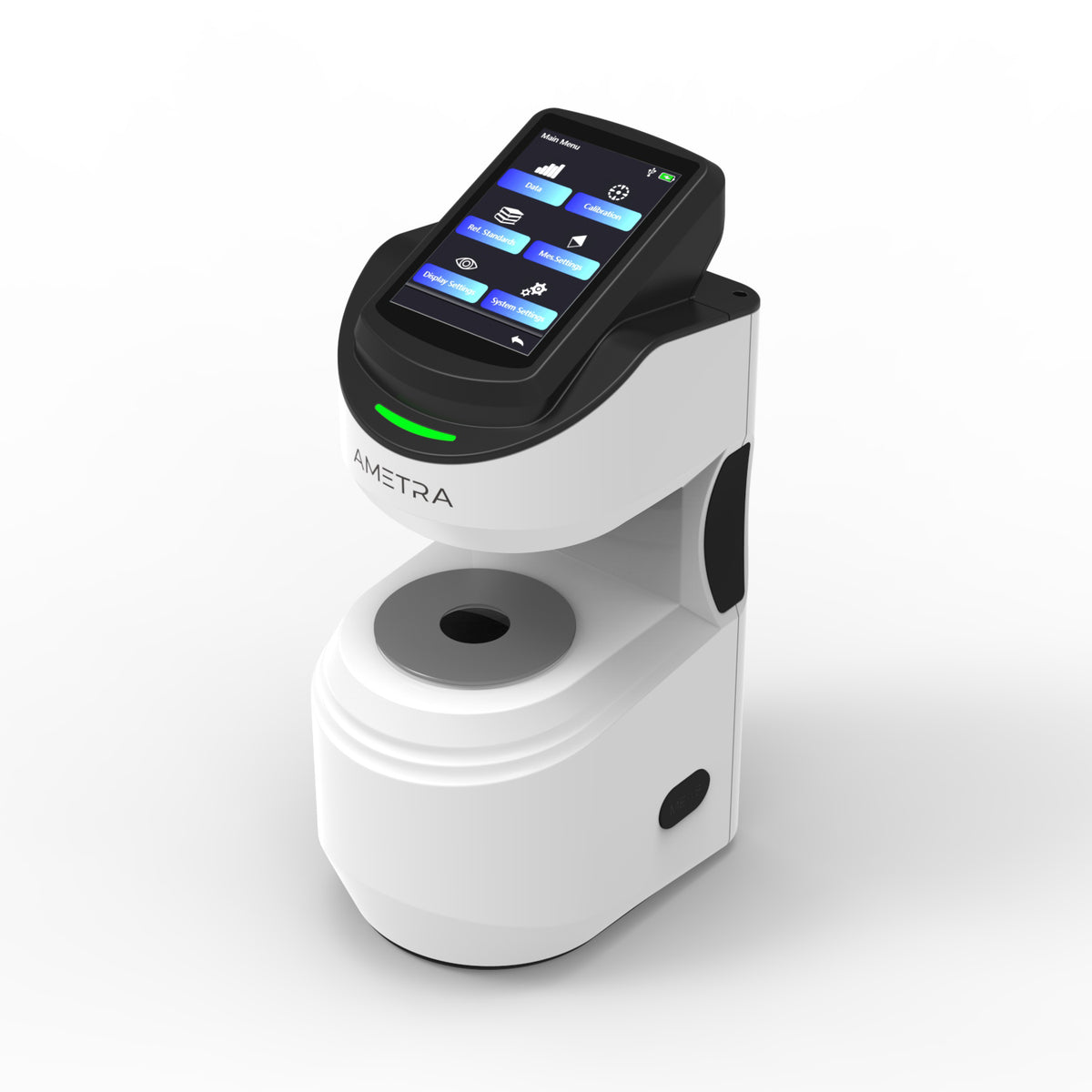

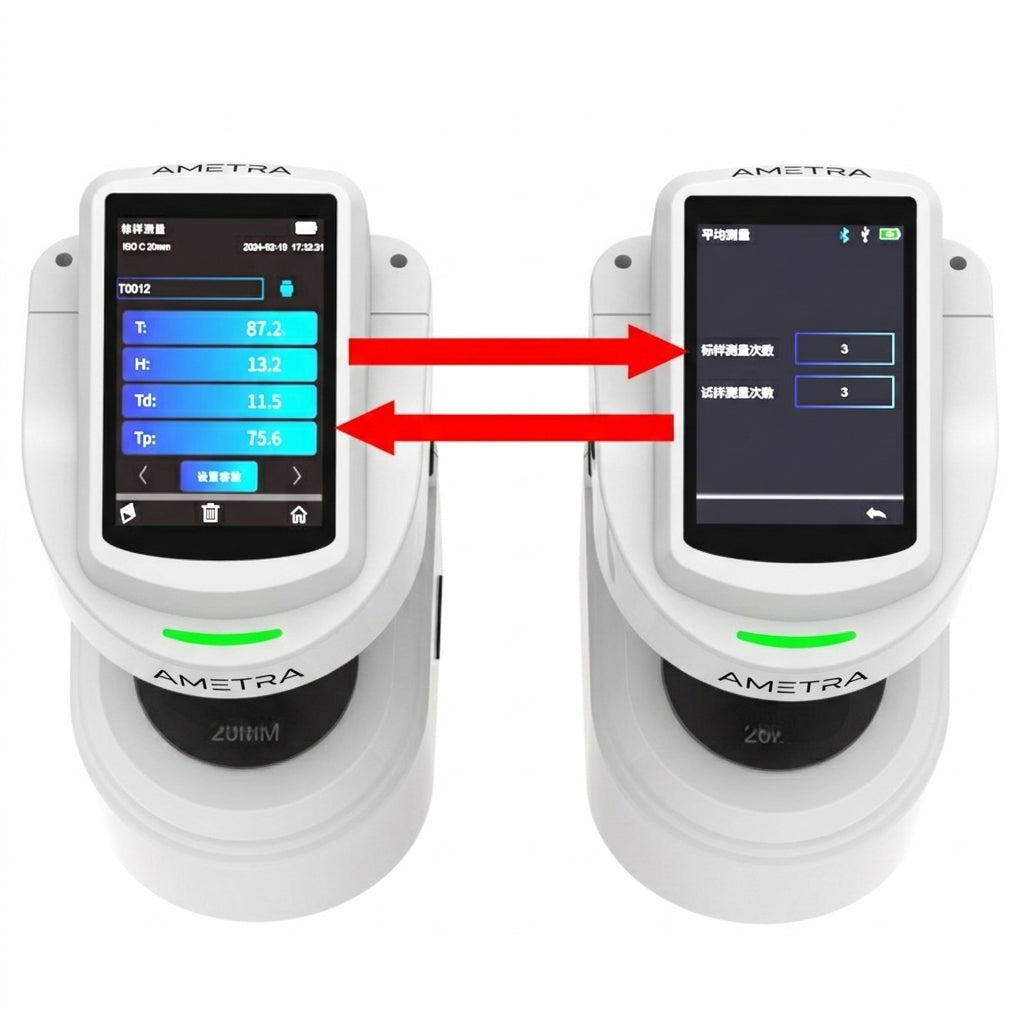

- Integrated 3.5" color touch screen for easy standalone operation

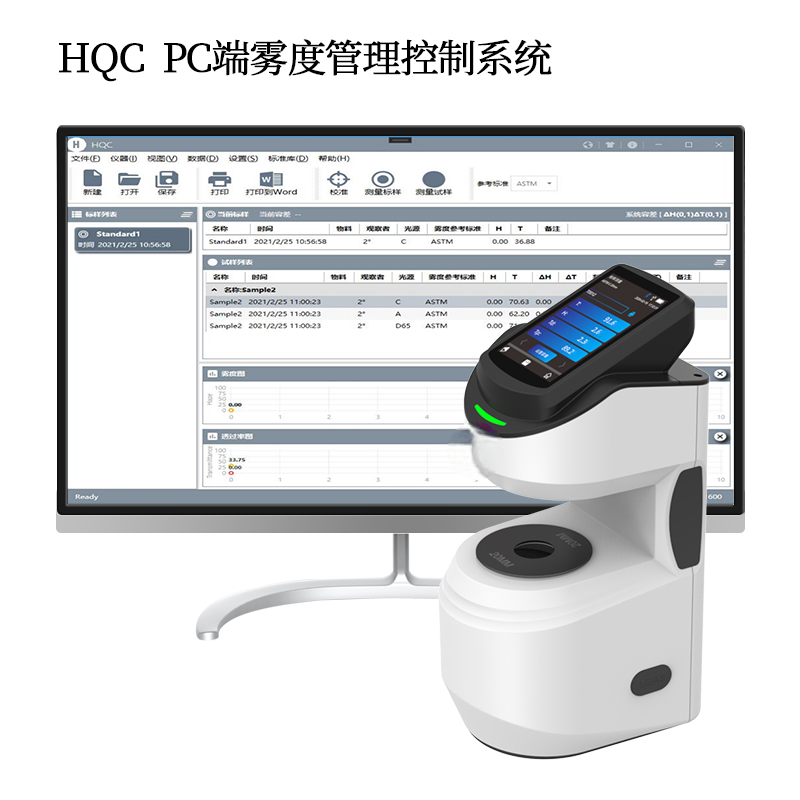

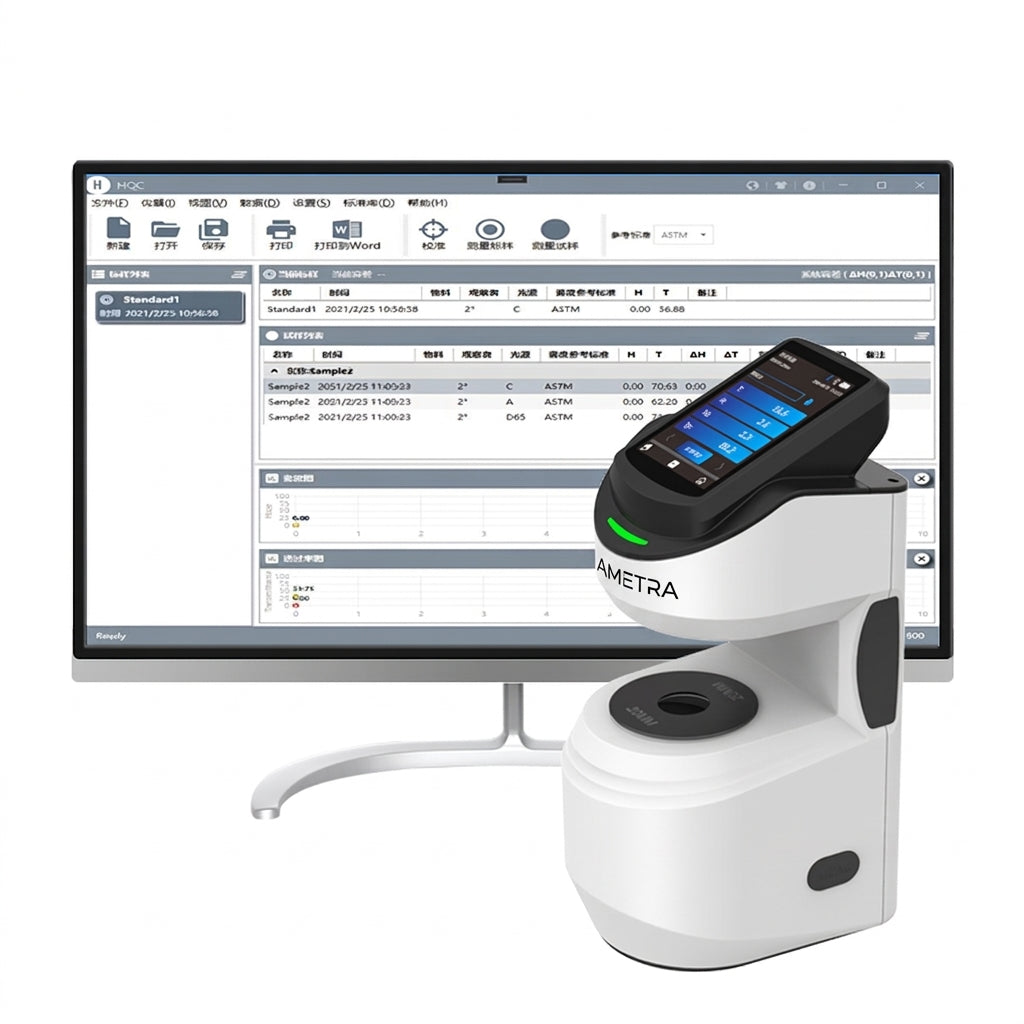

- Bundled SQCX fully functional Color Control PC Software
Business Impact & Applications
- Quality Control at the Source: Portability allows testing at receiving, on assembly lines, and in the field—detecting out-of-spec batches early to eliminate wasteful processing.
- Wide Industry Versatility: Glass & glazing, plastics & packaging, films, foils, sheets, food & beverage (clear liquids), pharmaceuticals, automotive clear/tinted parts, paints, coatings, and transparent substrates.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Ametra Clear Portable Transmittance Spectrophotometer |
| Price | $520.00 |
| Measuring Geometry | 0°/d transmission geometry |
| Light Source & Lifespan | LED | > 3,000,000 measurements |
| Aperture & Clearance | 20 mm aperture | Sample thickness < 40 mm |
| Targeting & Measurement Time | Aperture targeting | 1.5 seconds measurement time |
| Spectral Range & Interval | 400–700 nm | 10 nm interval |
| Observer & Illuminants | 2° Standard Observer | D65, A, C illuminants |
| Repeatability & Agreement | Repeatability: 0.1 | Inter-Instrument Agreement: 0.5 |
| Main Indices | Haze, Transmittance (T) |
| Display & Storage | 3.5" Color Touch Screen | Shows Color Values, Differences, Pass/Fail Indication | Stores up to 1,000 Standards and 10,000 Samples |
| Interface & Power | USB Type-C | Li-polymer rechargeable battery with USB Type-C charging |
| Size & Weight | 100 × 129 × 238 mm [3.94 × 5.08 × 9.37 in] | 1,300 g [2.87 lbs] |
| Software | Bundled SQCX fully functional Color Control Software |
Competitive Comparison
| Parameter | Ametra Clear Portable Transmittance Spectrophotometer | Qualitest Portable Haze Meter QH-12 |
|---|---|---|
| Price | $520.00 | $1,300.00 |
| Measuring Geometry | 0°/d | 0°/d |
| Light Source & Lifespan | LED (>3M measurements) | LED (>3M measurements) |
| Aperture & Clearance | 20 mm | Max thickness <40 mm | 15 / 21 mm | Max thickness <40 mm |
| Measurement Time | 1.5 sec | 1.5 sec |
| Spectral Range & Interval | 400–700 nm | 10 nm | 400–700 nm | 10 nm |
| Observer & Illuminants | 2° | D65, A, C | 2° | D65, A, C |
| Repeatability / Agreement | 0.1 | 0.5 | 0.05 | 0.04 |
| Main Indices | Haze, Transmittance T | Haze (ASTM D1003/1044), Transmittance T (ASTM) |
| Display & Storage | 3.5" Color Touch Screen | 1,000 Standards / 10,000 Samples | 2.8" Touchscreen | Displays Values & Pass/Fail |
| Interface & Power | USB Type-C | Li-poly battery with USB Type-C charging | USB | Rechargeable Lithium battery with USB charging |
| Size & Weight | 100 × 129 × 238 mm [3.94 × 5.08 × 9.37 in] | 1,300 g [2.87 lbs] | 133 × 99 × 224 mm [5.24 × 3.90 × 8.82 in] | 1,250 g [2.76 lbs] |
| Software Package | Bundled SQCX fully functional Color Control Software | — |
