Ametra Petri Benchtop Spectrophotometer
Product Overview
Benchtop Spectrophotometer with Record 2-Inch Aperture: Measure heterogeneous samples with unprecedented accuracy. Not all product samples come in neat, flat, homogeneous units. Pellets, powders, particles, rough surfaces, fabrics, food, and natural materials are inherently non-uniform. Standard small-aperture instruments deliver inconsistent readings that fail to reflect the true overall color of these complex materials.

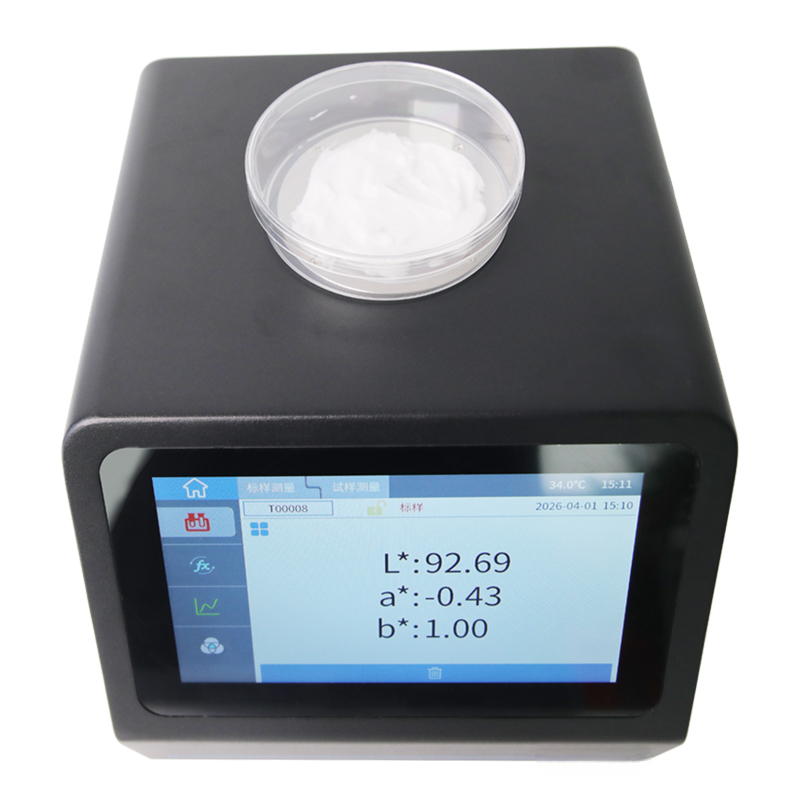

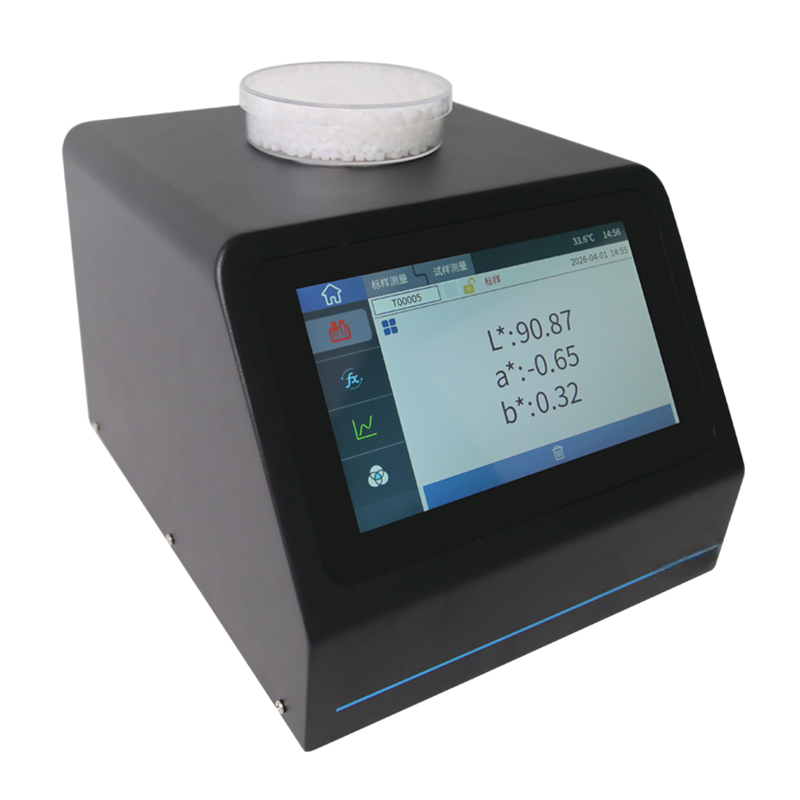

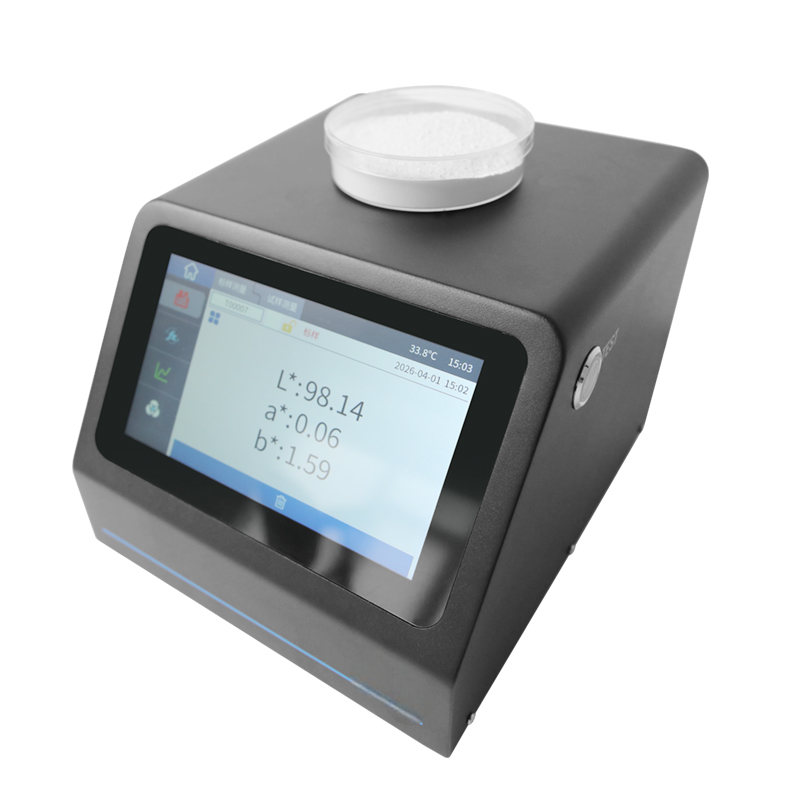

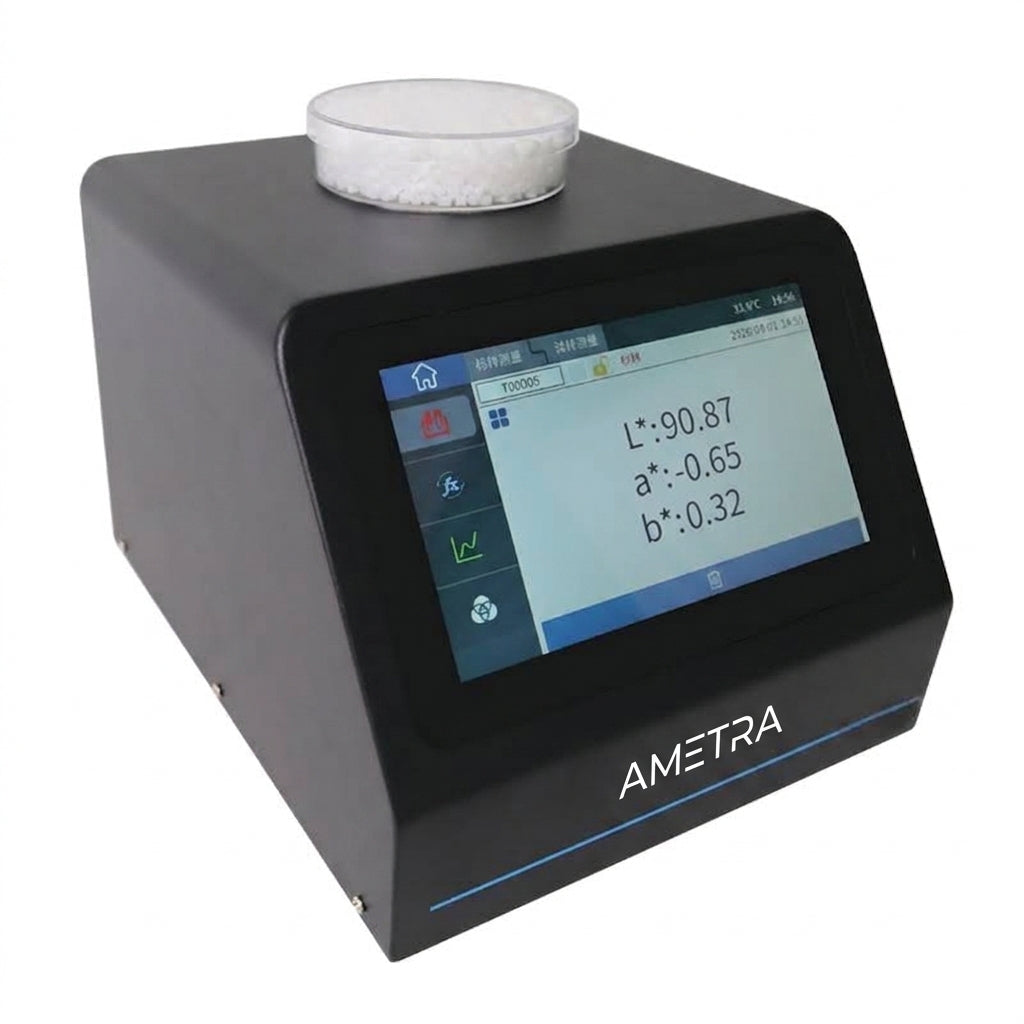

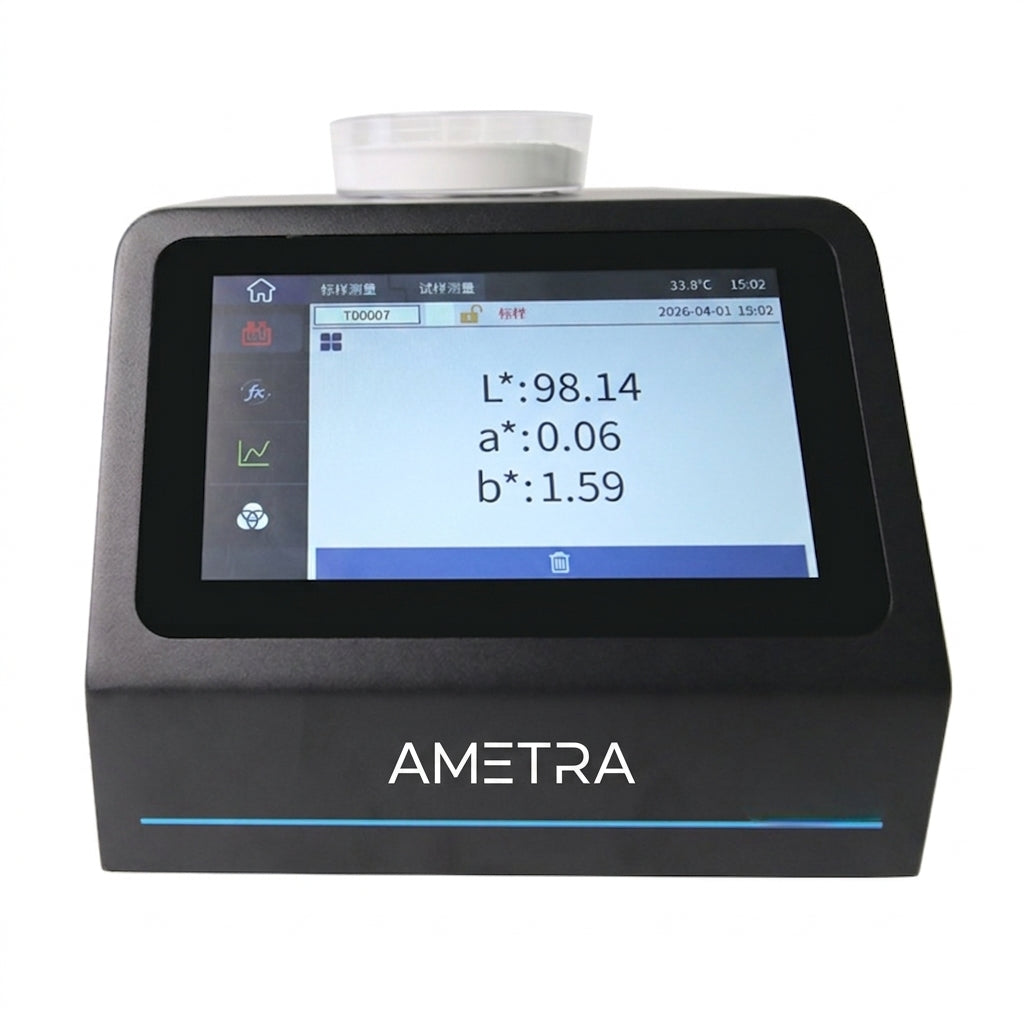

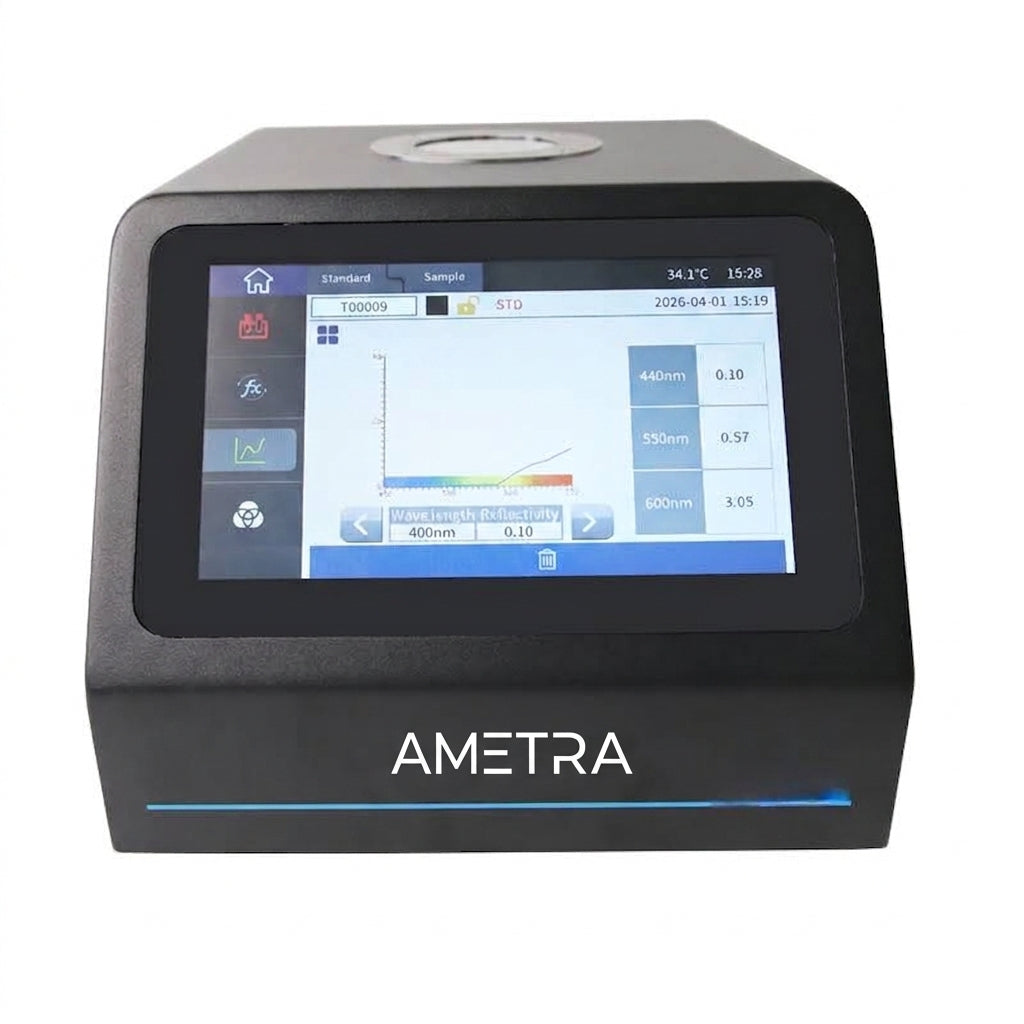

The Ametra Petri Benchtop Spectrophotometer features a record-breaking 2-inch (50 mm) diameter measurement aperture—the largest available in its class. This unique design averages color measurement across uneven, particulate, and heterogeneous sample surfaces, delivering reliable, repeatable color data for difficult-to-measure materials. Operable autonomously via an iPad-sized 7" color touchscreen or connected to a PC for advanced quality workflow integration.
Target Audience
- Color matchers & color matching technicians
- Colorists & tint specialists
- Color quality control technicians & engineers
- Manufacturing quality engineers with color focus
- Color development & lab technicians
- QC lab technicians & technical service specialists
Key Capabilities
- Record 50 mm (2-Inch) Aperture: Maximum measurement area for true optical averaging of non-uniform samples.

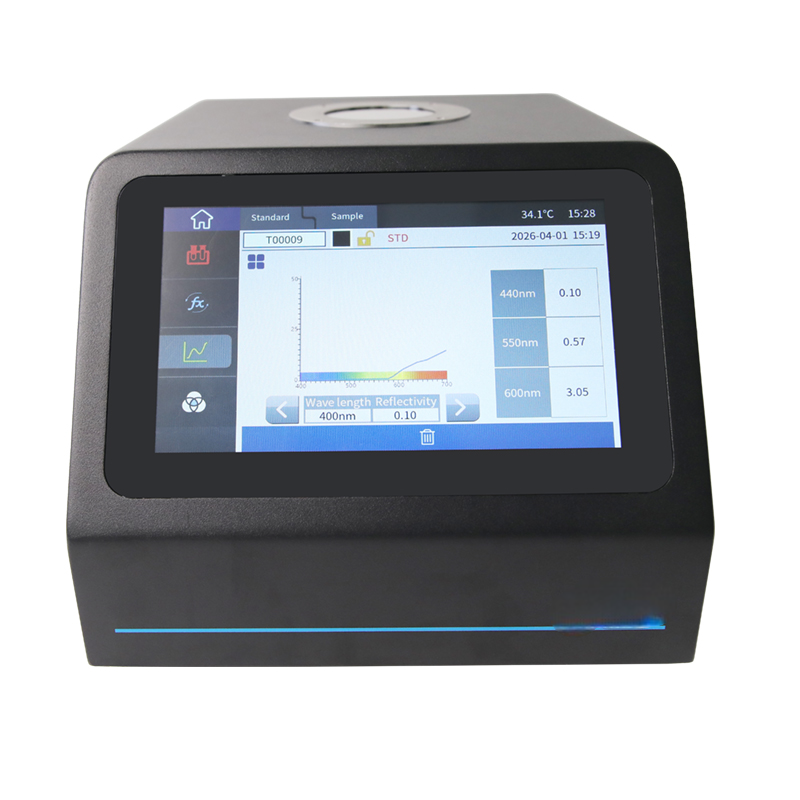

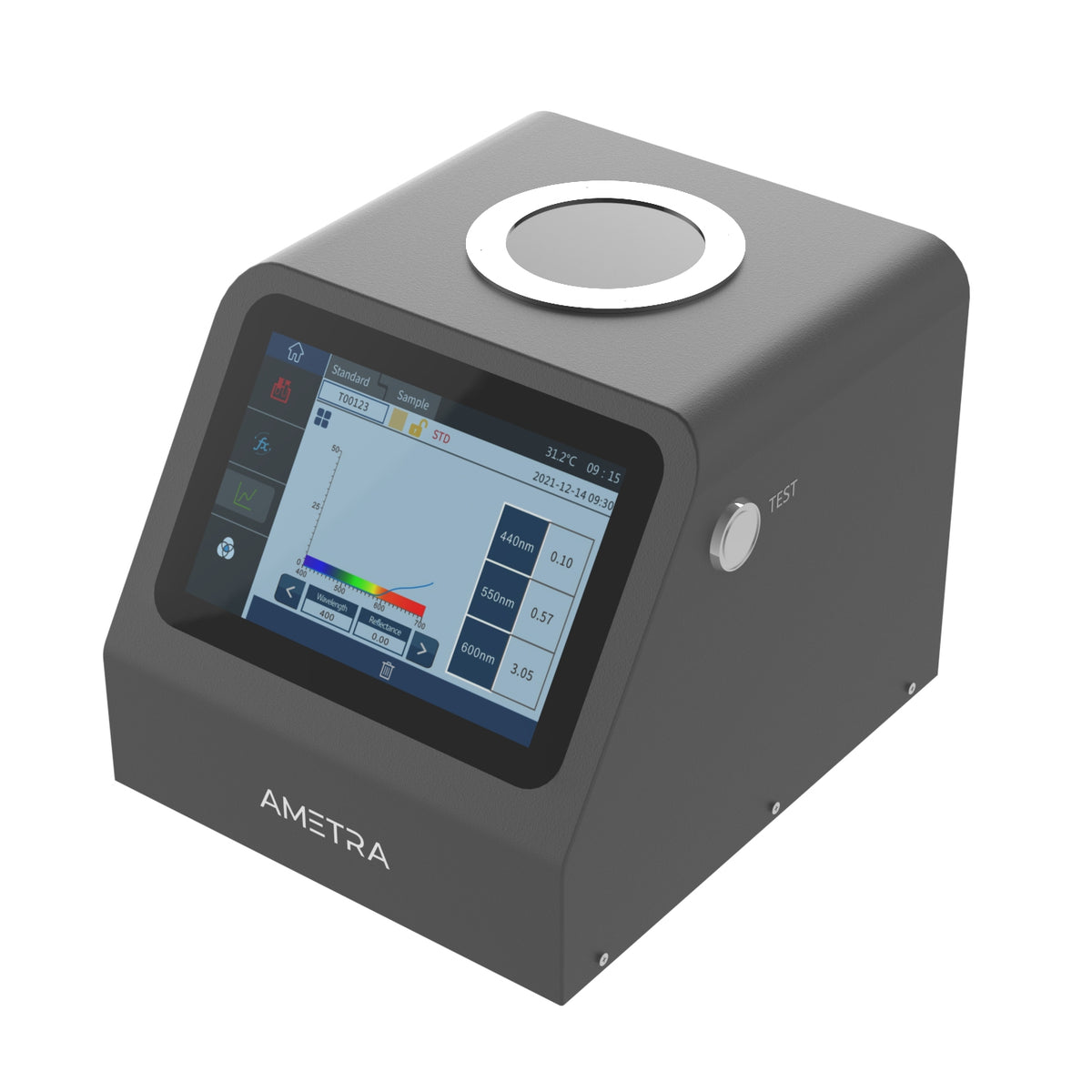

- Autonomous & Connected Operation: High-resolution 7" color touch screen for standalone use or PC integration via SQCX software.
- PASS/FAIL Judgment: Instant tolerance verification, target standard storage, and verbal color difference reporting.
- Specialized Indices: Dedicated food and industrial indices including Coffee roast, SCAA, HCCI, BCU, Tomato a/b, FTCI, TPS, TSS, TCS, TJS, and Lycopene.
Business Impact & Applications
- Reliable Quality Control: Eliminate guesswork and spot-reading variance on heterogeneous materials to prevent costly quality escapes and customer rejection.
- Raw Material to Finished Goods: Gain clear color visibility across raw powders, pellets, and finished goods to maintain strict brand standards.
- Versatile Applications: Plastics and electronics, paints and inks, textiles and apparel, commercial printing, ceramics, and food industries.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model | Ametra Petri Benchtop Spectrophotometer |
| Price | $1,450.00 |
| Measuring Geometry | Specular Component | 45°/0° | – |
| Light Source | Lifespan | LED | > 2,000,000 measurements |
| Aperture | Targeting | Speed | Averaging | 50.00 mm (2 in) aperture | Aperture targeting | 1.0 sec measurement time | Averaging |
| Spectral Range | Interval | 400–700 nm | 10 nm |
| Standard Observer | Illuminants | 2° & 10° Standard Observer | D65, A, C illuminants |

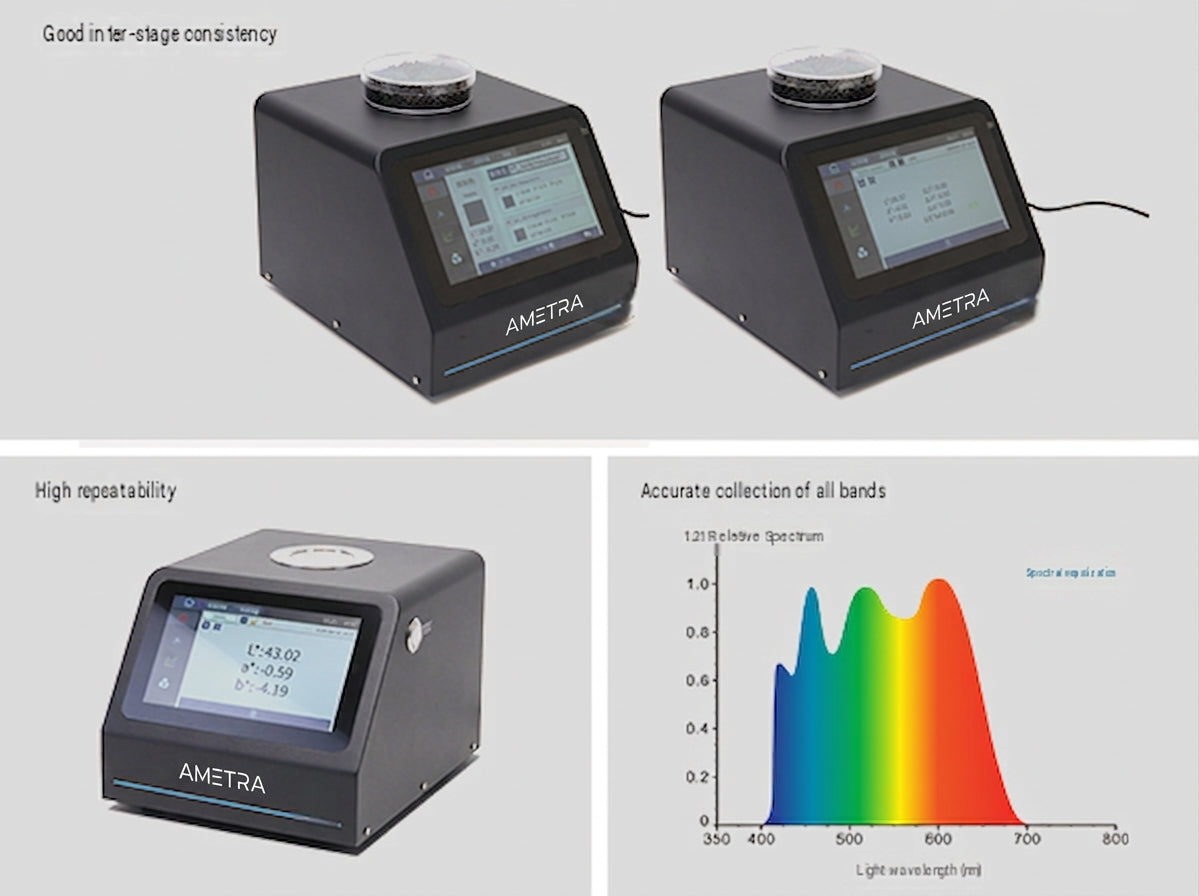

| Repeatability | Inter-Instrument Agreement | Repeatability: 0.03 | Inter-Instrument Agreement: 0.35 |
| Color Spaces | Difference | Indices | CIE L*a*b, HunterLab | ΔEab, ΔE(Hunter) | SCAA, HCCI, Coffee roast, BCU, Tomato a/b, FTCI, TPS, TSS, TCS, TJS, Lycopene |
| Display & Storage | 7" Color Touch Screen | Displays Color Values, Numerical & Verbal Color Difference, Pass/Fail Indication | Stores up to 1,000 Standards and 30,000 Samples |
| Interface & Power | USB, Bluetooth | 24V DC, 3A adapter |
| Size & Weight | 210 × 245 × 188 mm [8.27 × 9.65 × 7.40 in] | 3,100 g [6.83 lbs] |
| Software | Bundled SQCX Fully Functional Color Control Software | Optional PeColor Ai Formulation Software |
Competitive Comparison
| Parameter | Ametra Petri Benchtop Spectrophotometer | HunterLab ColorFlex L2 | Konica Minolta CM-5 |
|---|---|---|---|
| Price | $1,450.00 | $13,340.00 | $15,000.00 |
| Measuring Geometry | Specular Component | 45°/0° | – | 45°/0° | – | d:8° | SCI / SCE switchable |
| Light Source | Lifespan | LED | > 2,000,000 measurements | Xenon flash lamp | 10 years | Pulsed xenon lamp | – |
| Aperture | Targeting | Speed | 50.00 mm (2 in) | Aperture | 1.0 sec | Averaging | 25.04 mm (1 in) | Camera with liveview | 1.0 sec | Averaging | 36.00 mm (1.4 in) | Aperture | 1.0 sec | Averaging |
| Spectral Range | Interval | 400–700 nm | 10 nm | 400–700 nm | 10 nm | 360–740 nm | 10 nm |
| Observer & Illuminants | 2° & 10° | D65, A, C | 2° & 10° | A, C, D50, D55, D65, D75, F02, F07, F11 | 2° & 10° | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65 |
| Repeatability | Inter-Instrument Agreement | 0.03 | 0.35 | 0.05 | 0.15 | 0.04 | 0.15 |
| Color Spaces & Indices | CIE L*a*b, HunterLab | ΔEab, ΔE(Hunter) | SCAA, HCCI, Coffee roast, BCU, Tomato a/b, FTCI, TPS, TSS, TCS, TJS, Lycopene | CIE L*a*b, Hunter Lab, CIE LCh, CIE Yxy, CIE XYZ | ΔE, ΔE2000, ΔH, ΔC*, ΔEcmc | E313 WI/Tint, E313 YI, D1925 YI, Opacity, Color Strength, Gray Scale, Metamerism, HCCI, SCAA, Tomato indices | L*a*b, LCh, Hunter Lab, Yxy, XYZ, Munsell | ΔEab, ΔE*94, ΔE00, ΔE(Hunter), CMC | MI, WI (E313), YI (E313/D1925), ISO Brightness |
| Display & Storage | 7" color touch screen | Shows Color Values, Numerical & Verbal Difference, Pass/Fail | 1,000 Standards / 30,000 Samples | 7" Color LCD Touch Screen | Shows Color Values, Difference, Pass/Fail | Up to 1,000,000 records max | 5.7" TFT color LCD | Shows Color Values, Difference, Pass/Fail | 1,000 Standards / 4,000 Samples |
| Interface & Power | USB, Bluetooth | 24V DC, 3A adapter | 2 USB, HDMI, Ethernet, Foot switch | 90–240 VAC @ 24VDC/3.75A | USB 1.1, RS-232C | AC 100–240V adapter |
| Size & Weight | 210 × 245 × 188 mm [8.27 × 9.65 × 7.40 in] | 3,100 g [6.83 lbs] | 160 × 210 × 240 mm [6.30 × 8.27 × 9.45 in] | 2,750 g [6.06 lbs] | 385 × 192 × 261 mm [15.16 × 7.56 × 10.28 in] | 5,800 g [12.79 lbs] |
| Software | Bundled SQCX Color Control Software | Optional PeColor Ai Formulation Software | Bundled Essentials 2.0 QC Software | Optional SpectraMagic NX |
